CS-732 Remote Controls (433.9MHz)

Model:
CS-732-12V(433MHz)
CS-732-24V(433MHz)

These products are automatically controllers. You can choose two frequencies and the power suppliers are separately to DC 12V and DC24V each. It is build-in 2~3 relays and you can choose individually control or conjunctly control. Host has two relay models to be choose and it is easily for users to make settings by finger’ switch. It is very convenience and simple to make models or password’ setting. We have One-button controllers TX-F01, Two-button controllers TX-F02, and Copy-type controllers TX-N04.

APPEARANCE

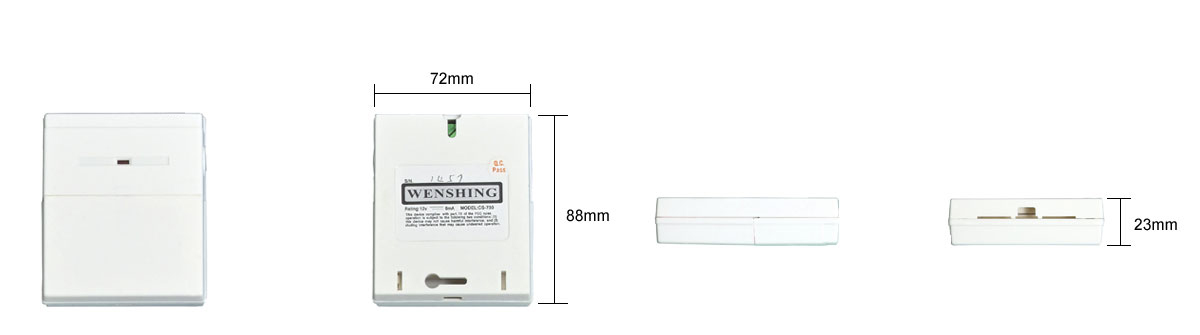

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO


FEATURES

Application

MetInfo enterprise content manager system | MetInfo CMS

RFID|Wireless Modules|RF Module|Wireless VIDEO

MetInfo enterprise content manager system | MetInfo CMS    MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS    MetInfo enterprise content manager system | MetInfo CMS



MetInfo enterprise content manager system | MetInfo CMS        MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS        MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS   MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS   MetInfo enterprise content manager system | MetInfo CMS


SPECIFICATION

Technical specifications

CS-732-12V(433.9MHz)

  • Sensitivity : 3uV

  • Code : 28,212,or 38,312

  • Power supply : 12V DC

  • Frequency Range : 433MHz

  • Power consumption : 10.6 mA/12V

  • Power consumption : 10.6 mA/12V

  • Relay contact voltage : 5A 12V DC

  • Control type : on/off, momentary,continue

  • Usage range : Elctronic lock, Garage door, Home alarm security system,Auto control system.

  • Wireless Remote Controller Electric Lock

    ItemSpecificationRemark
    Frequency433MHzAllow to assign frequency
    ModulationASK
    Supply VoltageDC 12V
    Current10.6mA/12V
    Control TypeON/OFF, Momentary, Continue
    Distance50~120M (Open space)

    TX-F01/TX-F02 Remote Controller

    ItemSpecificationRemark
    Frequency433MHzAllow to assign frequency
    Circuit ShapeSAW Resonator
    ModulationASK
    Battery23A 12V
    Distance50~120M (Open space)


CS-732-24V(433.9MHz)

  • Sensitivity : 3uV

  • Code : 28,212,or 38,312

  • Power supply : 24V DC

  • Frequency Range : 433MHz

  • Power consumption : 10.6 mA/12V

  • Power consumption : 10.6 mA/12V

  • Relay contact voltage : 5A 24V DC

  • Control type : on/off, momentary,continue

  • Usage range : Elctronic lock, Garage door, Home alarm security system,Auto control system.

  • Wireless Remote Controller Electric Lock

    ItemSpecificationRemark
    Frequency433MHzAllow to assign frequency
    ModulationASK
    Supply VoltageDC 24V
    Current10.6mA/12V
    Control TypeON/OFF, Momentary, Continue
    Distance50~120M (Open space)

    TX-F01/TX-F02 Remote Controller

    ItemSpecificationRemark
    Frequency433MHzAllow to assign frequency
    Circuit ShapeSAW Resonator
    ModulationASK
    Battery23A 12V
    Distance50~120M (Open space)
