Home > Products > Industrial Automation> Wireless Counter > 62GHz Radar Sensor

62GHz Radar Sensor

Model:
WS-RADAR62GBY

In March 2024, WENSHING launched the 62GHz Radar Sensor (Model: WS-RADAR62GBY). This product utilizes 62GHz millimeter-wave radar technology, a type of microwave sensor known for its high transmission rate, large data capacity, and low latency. It offers high precision, long-range detection up to 25 meters, and strong anti-interference capabilities, enabling accurate measurement of object distances.

This product WS-RADAR62GBY also comes with an App that allows users to set the desired sensing distance via their mobile phones and displays the current measured distance within the App.

Product Features


• High Precision: Distance measurement accuracy up to 1 centimeter, speed<40mS, angle accuracy up to <±1°.

• Long Range: Measurement range up to 25 meters.

• Strong Anti-interference Capability: Unaffected by environmental factors such as light, sound, dust, etc.

• Low power consumptionFast response speed, low power consumption




Application

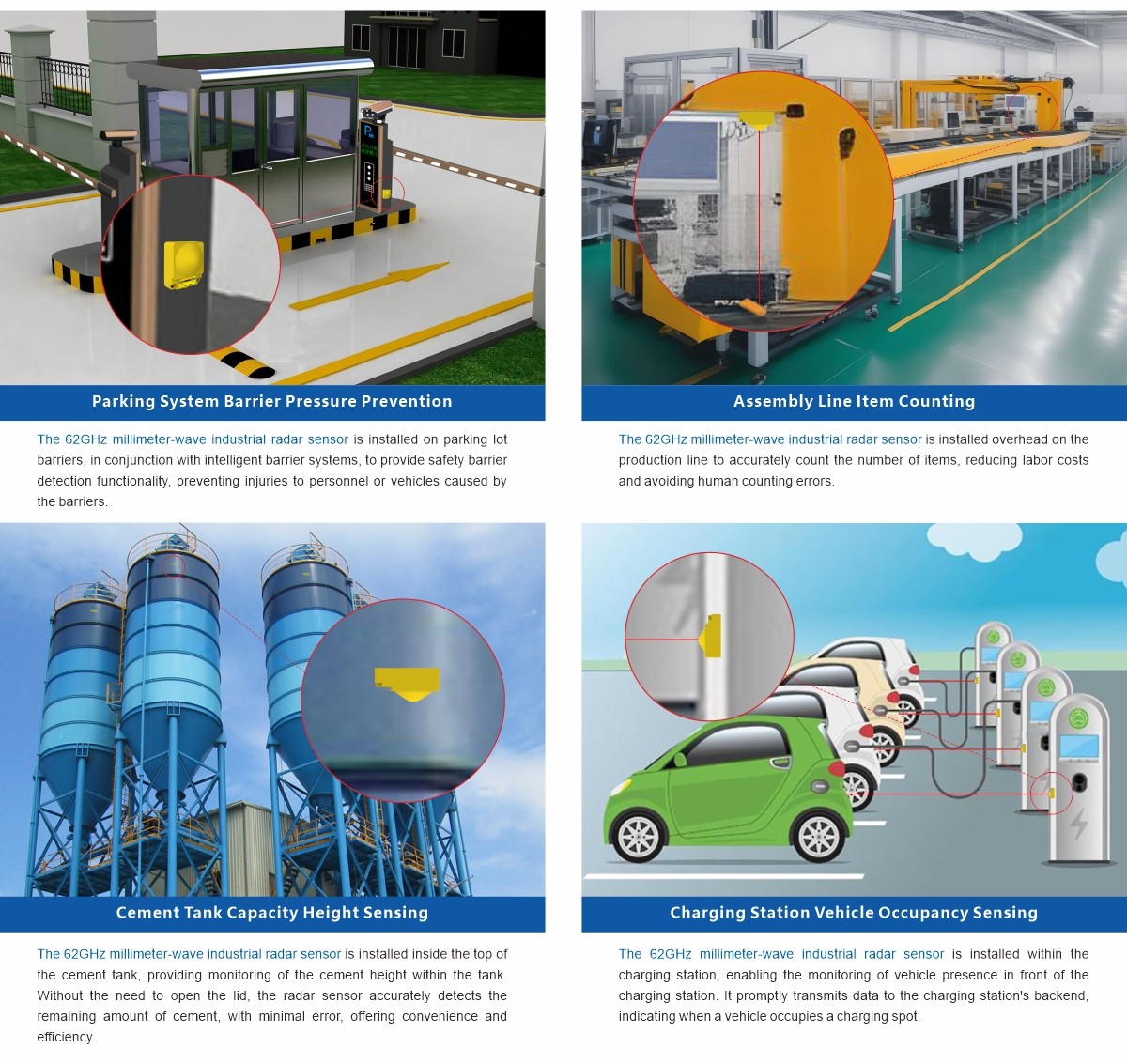

The 62GHz Radar Sensor WS-RADAR62GBY provides advanced sensing capabilities, capable of detecting finer objects, making it ideal for use in small devices with a high cost-performance ratio. It is widely applicable for liquid level measurement, parking space detection, material counting, and automation equipment. With its ultra-precise radar system, it is an ideal solution for both industrial and consumer applications.


/upload/202405221750387198.gif

Garbage Collection Station Roll-up Door Sensor


The 62GHz Radar Sensor WS-RADAR62GBY is installed at the garbage collection station to detect whether the roll-up door should open or close. The detection range is set to a height above the ground that matches the height of the garbage truck, for example, 2 meters. Since the average adult height does not exceed 2 meters, the door will not automatically open when a person walks by. The door will only open when an object higher than 2 meters above the ground is detected.





Working Principle


The 62GHz Radar Sensor WS-RADAR62GBY utilizes microwave reflection properties to measure distance. The sensor emits microwave pulses and receives the reflected pulses. By calculating the round-trip time of the pulses, the distance can be determined.

Millimeter-wave (mmWave) radar provides various functions, such as monitoring multiple areas to locate presence and tracking the movement within each area.





Mobile App Distance Measurement


Please access the download page on this page or by scanning the QR code to download the 62G radar sensor software app for this product.


/upload/202409141209659188.png

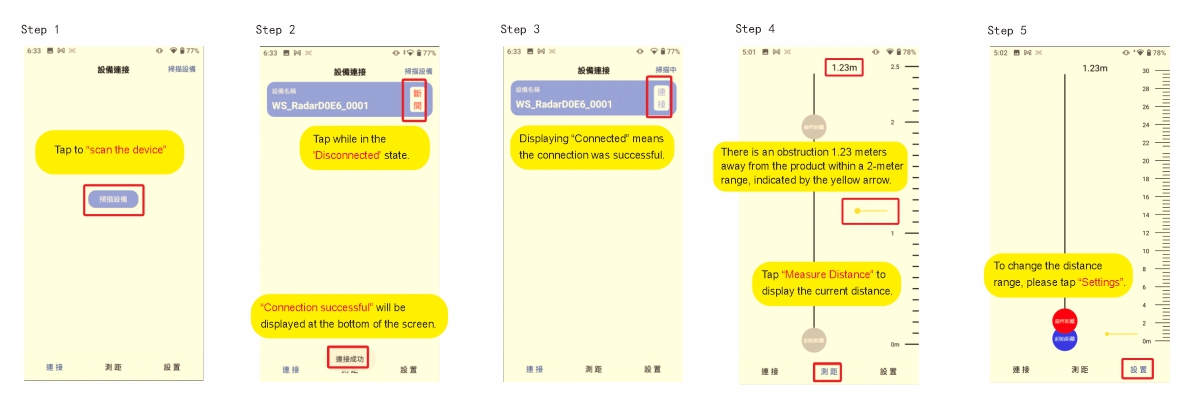

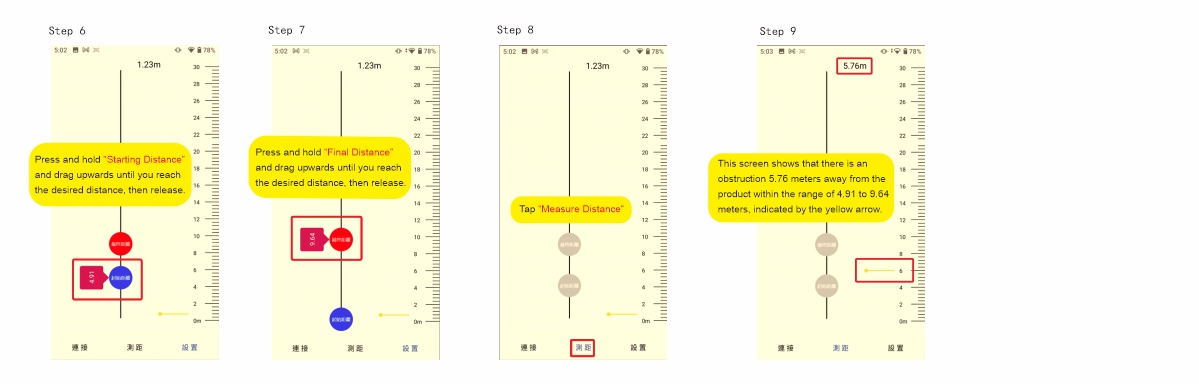

Install it on an Android phone and follow the steps shown below to perform distance measurement:



Interfaces


/upload/202406251032081327.png  /upload/202406241457454810.png  /upload/202406241555446056.png

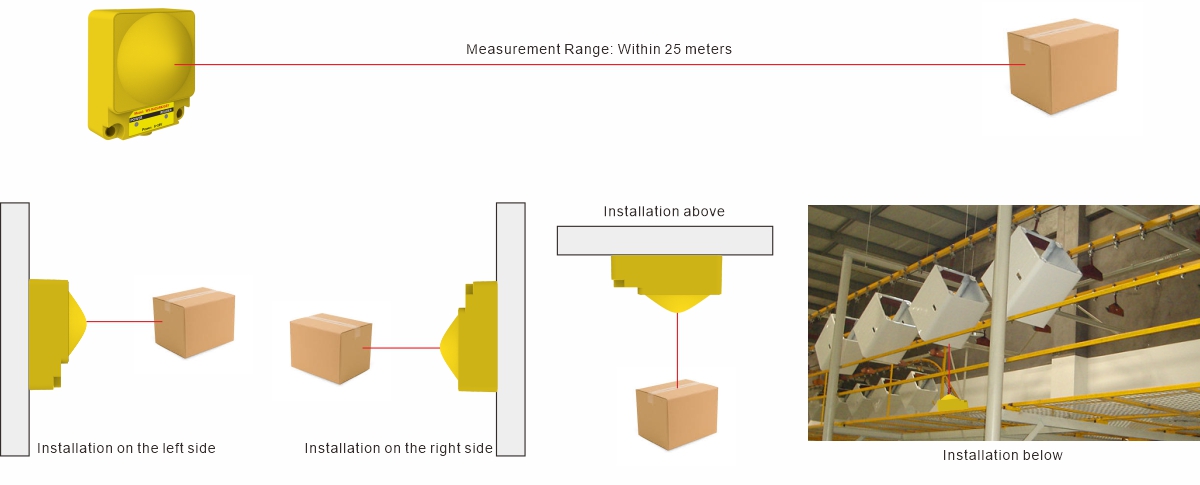

Installation Guide


The 62GHz Radar Sensor WS-RADAR62GBY should be installed in either a horizontal or vertical orientation.

The distance between the sensor and the object being measured should be within 25 meters.

Avoid installing the sensor in environments with metallic objects or electromagnetic interference in front of it.






Electrical Characteristics


• Operating Frequency: 56GHz to 62GHz

• EIRP: 10dBm

• Operating Voltage: 6V to 28V

• Relay: 1A

• Measurement Range: 0.13m to 25m

• Measurement Response Time:<40ms

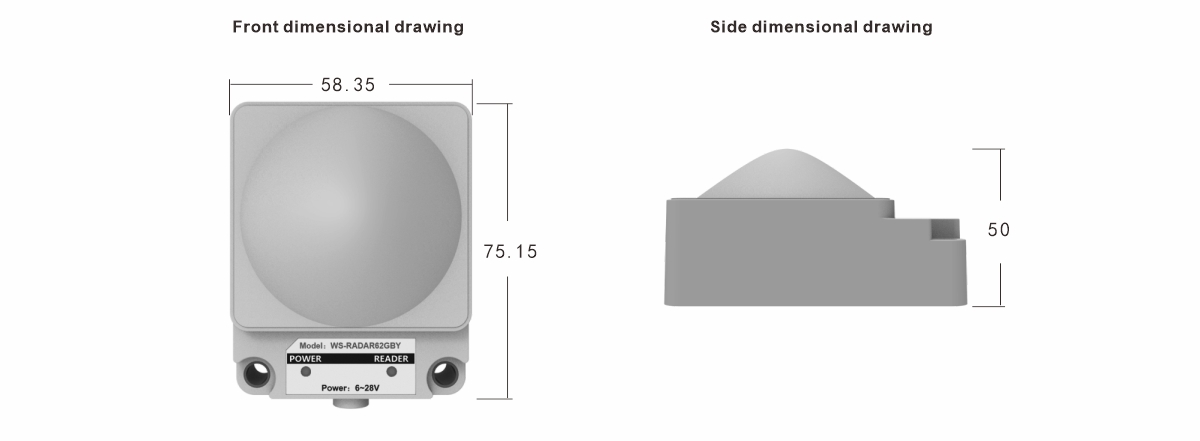

• Product Dimensions: 58.35*75.15*50mm

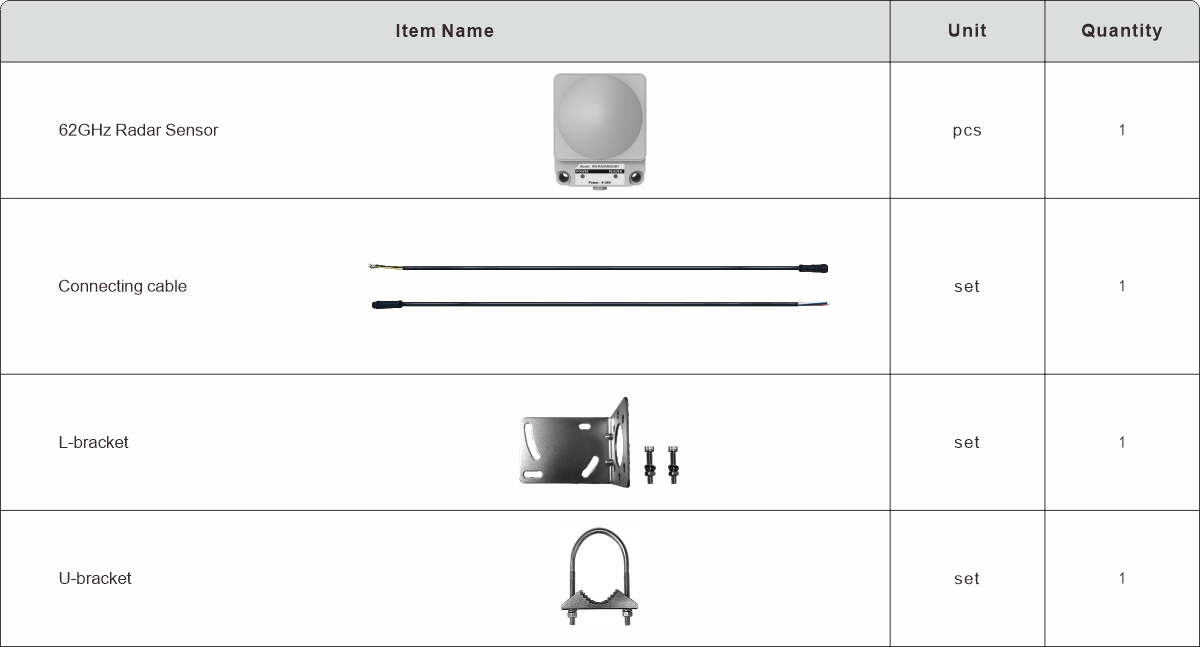

Product Accessories
