Product Presentation

Product System

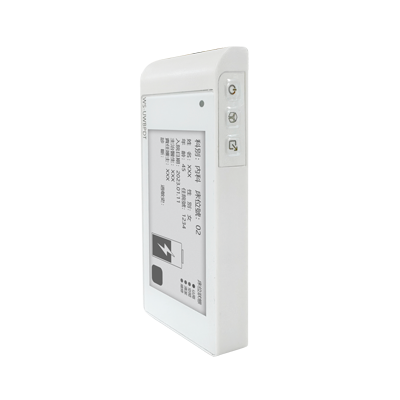

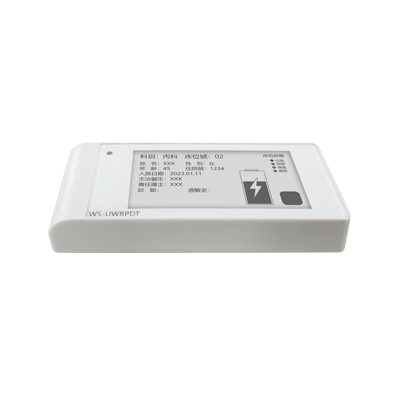

The positioning tag is lightweight and portable, ideal for real-time location tracking. The tag is equipped with a built-in UWB (Ultra-Wideband) chip and sensors, which can measure parameters such as distance and direction. It calculates the target's position information and transmits this data to the locator.

Product Feature

Core feature

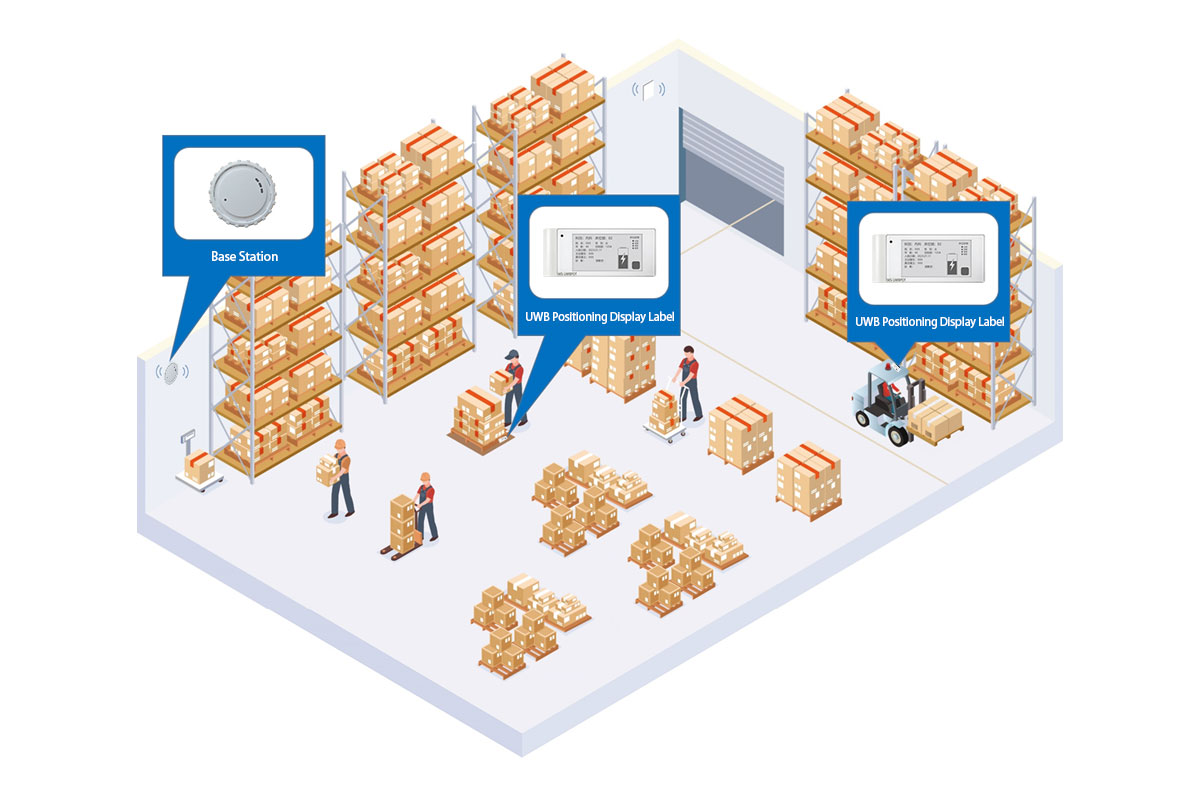

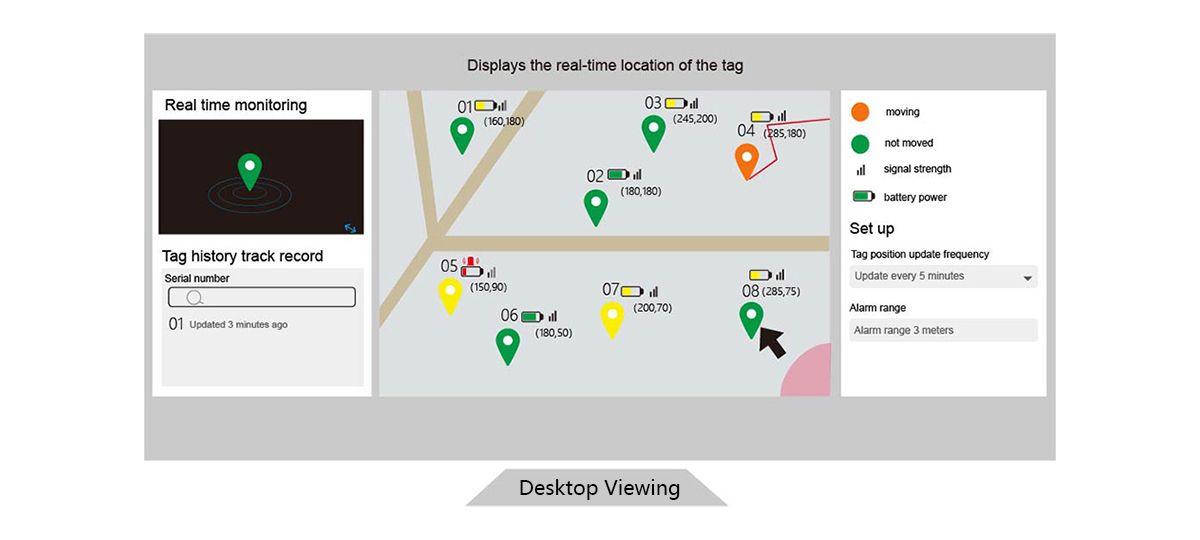

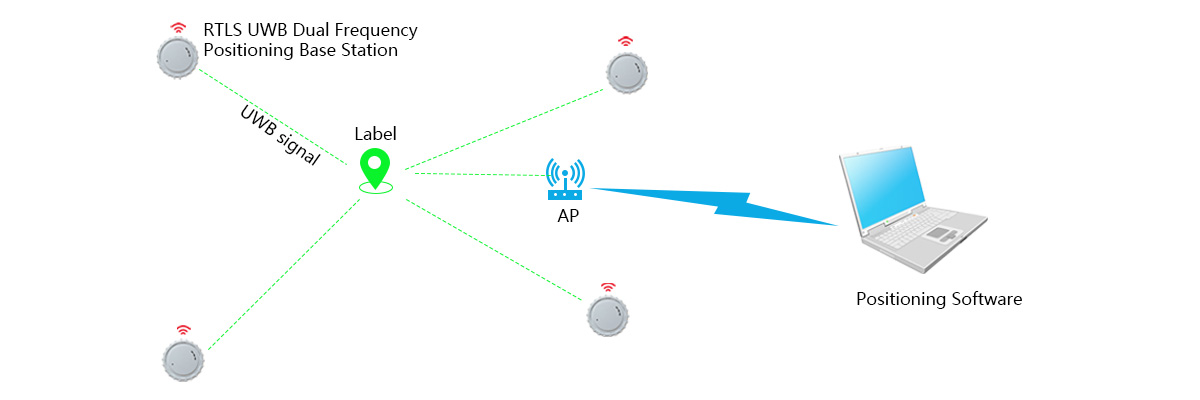

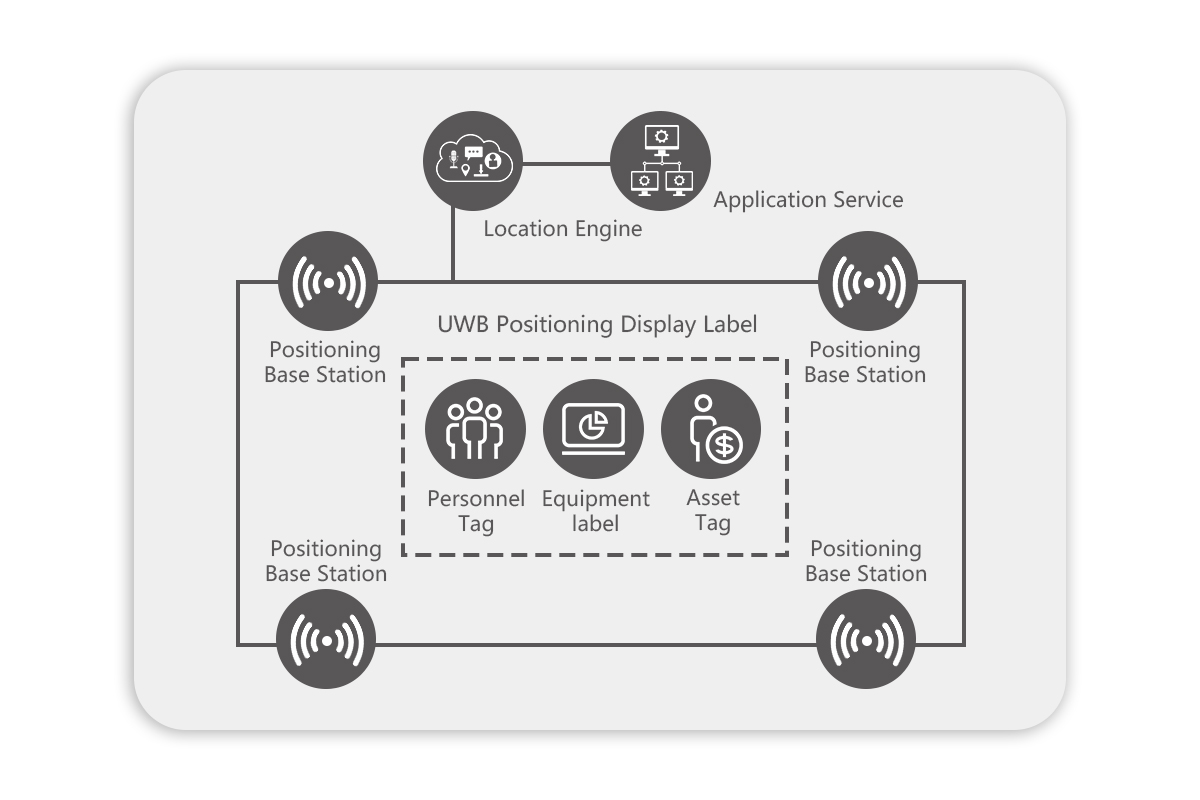

Positioning Architecture

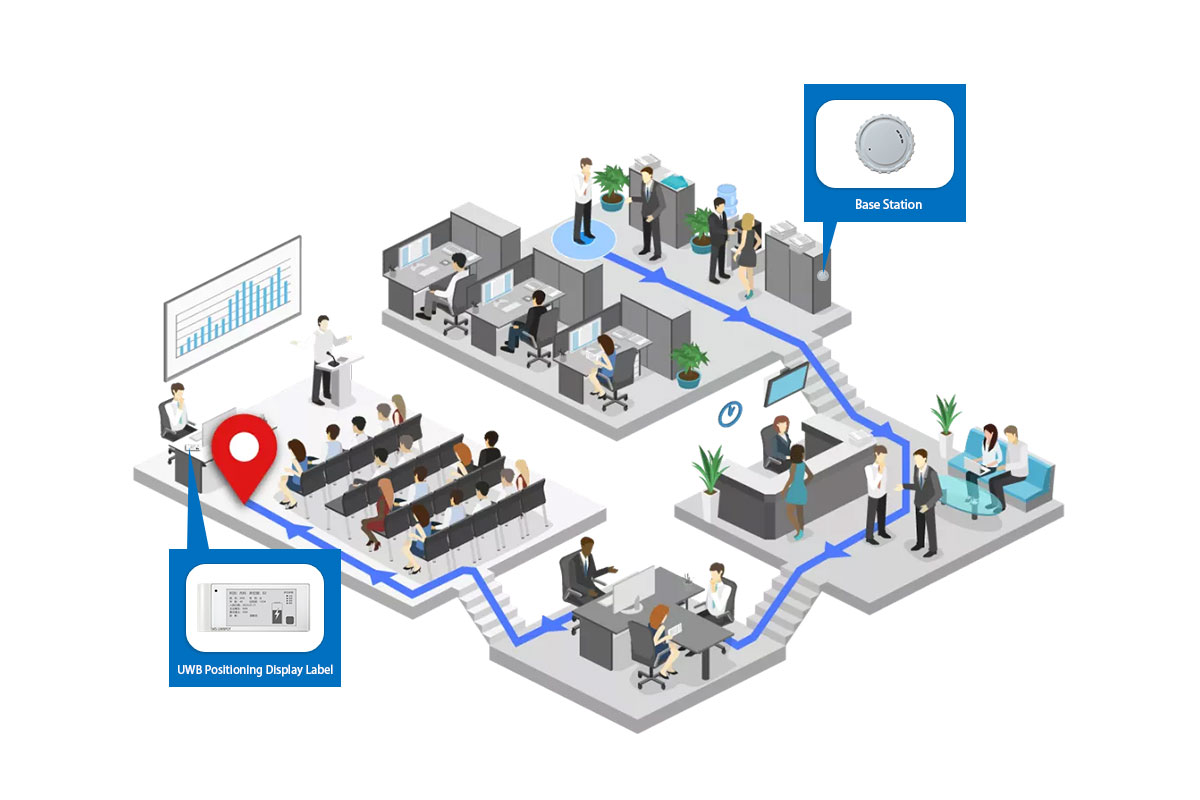

Application Scenarios

Product Specifications

UWB Operating Frequency: 6.5GHz

UWB Protocols: IEEE 802.15 4a and 4z-BPRF standards

UWB Output Power: -20dBm (Based on spectral density)

Communication Interface: Wifi

Wifi Protocols: IEEE 802.11b/g/n

Wifi Output Power: 20dBm Maximum

Operating Voltage: DC 4V

Standby Current: Below ? uA

Battery Type: Built-in 1200mAh Lithium Polymer Battery

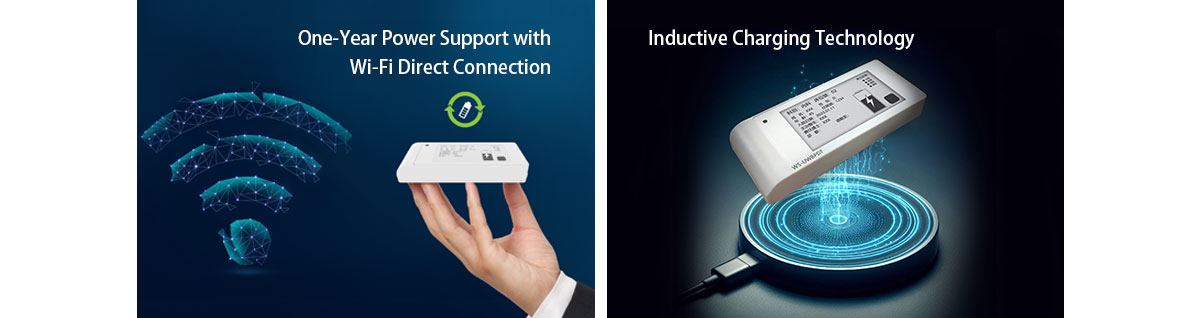

Charging Method: QI Wireless Charging Technology

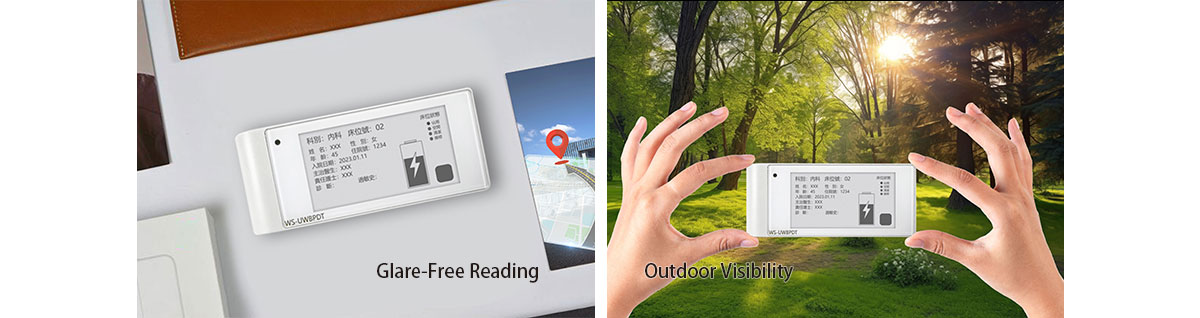

Display Type: Monochrome ePaper Display

Display Resolution: 2.6 inch 152*296 pixels

Lifespan: ? years (Under minimum power consumption scenarios)

Button Functions: Power button, Switch button, *** button

Audiovisual Indicators: Buzzer, High-brightness LED

Alarm Decibel: >50dB

Built-in Sensors: 3-axis Acceleration Sensor

3-axis Acceleration: ±2g@4096 LSB/g to ±32g@256 LSB/g

Casing Material: ABS

Operating Temperature: -20℃ to +80℃

Dimensions: 1004214mm

Weight: 68g (Including battery)
