RFID Race Mat Antenna

Model:
WS-RAM2-U925

This RFID Race Mat Antenna is specifically designed for RFID timing systems in events like marathons and road races, offering excellent read performance and flexible on-site deployment.

It features high gain and circular polarization, ensuring superior anti-interference capability and stable signal reception.

Its modular design allows for easy assembly and integration, with each meter featuring a unitized interface for flexible splicing and convenient installation.

The flat profile makes it less susceptible to weather conditions such as wind, rain, and snow, while also providing good concealment. This makes it ideal for venues where aesthetics or low visibility are required.

This antenna is highly versatile and can be widely applied in various large-scale outdoor events, including RFID timing for road races and other Internet of Things (IoT) wireless transmission applications.






APPEARANCE

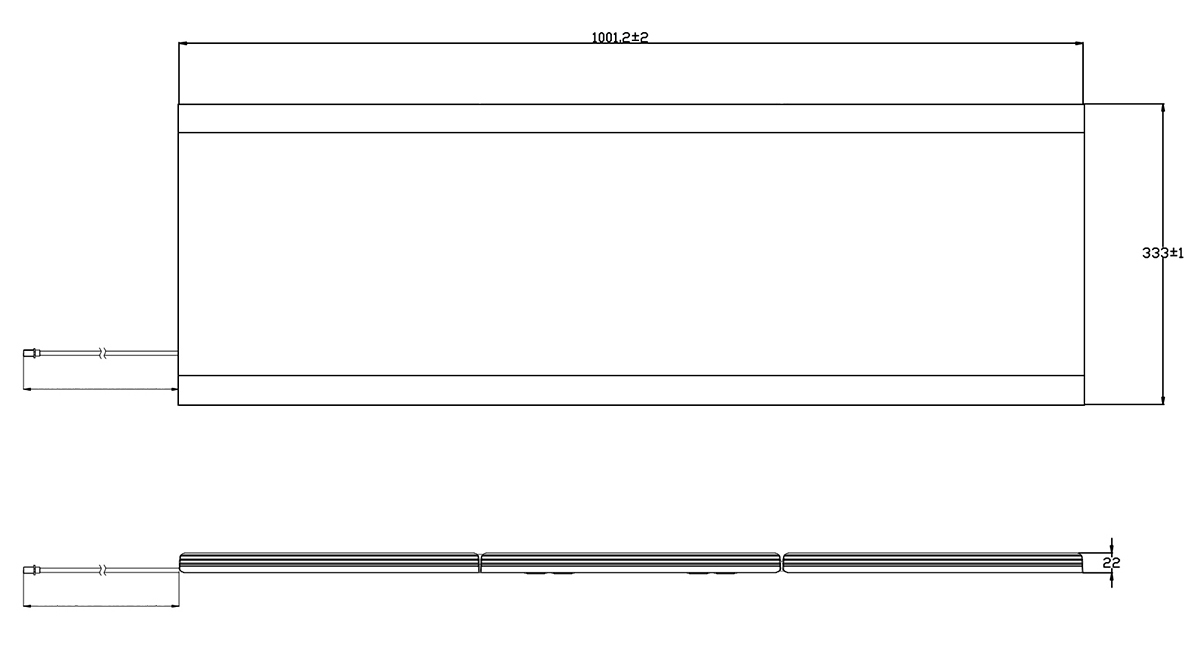

External Appearance





SPECIFICATION

Technical specifications

    Electrical Specifications

    Frequency Range(MHz)

    902~928

    Gain(dBi)

    8.5±0.5dBi

    Beam Width(°)

    Hor:65±5  Ver:65±5

    VSWR

    2.0

    Impedance(Ω)

    50 Ω

    Polarization

    Circular Polarization

    Axial Ratio(dB)

    3

    MAX. Power(W)

    50

    Lightning Protection

    DC Grounded

    Mechanical Specifications

    Connector

    SMA or TNC

    Connector Position

    Side Feed

    Dimension(mm)

    1000 × 333 × 22

    Weight(kg)

    5kg

    Radome Material

    PC+ABS

    Radome Color

    Blue

    International Protection

    IP67

    Operating Temperature(℃)

    -40°C ~ +55
