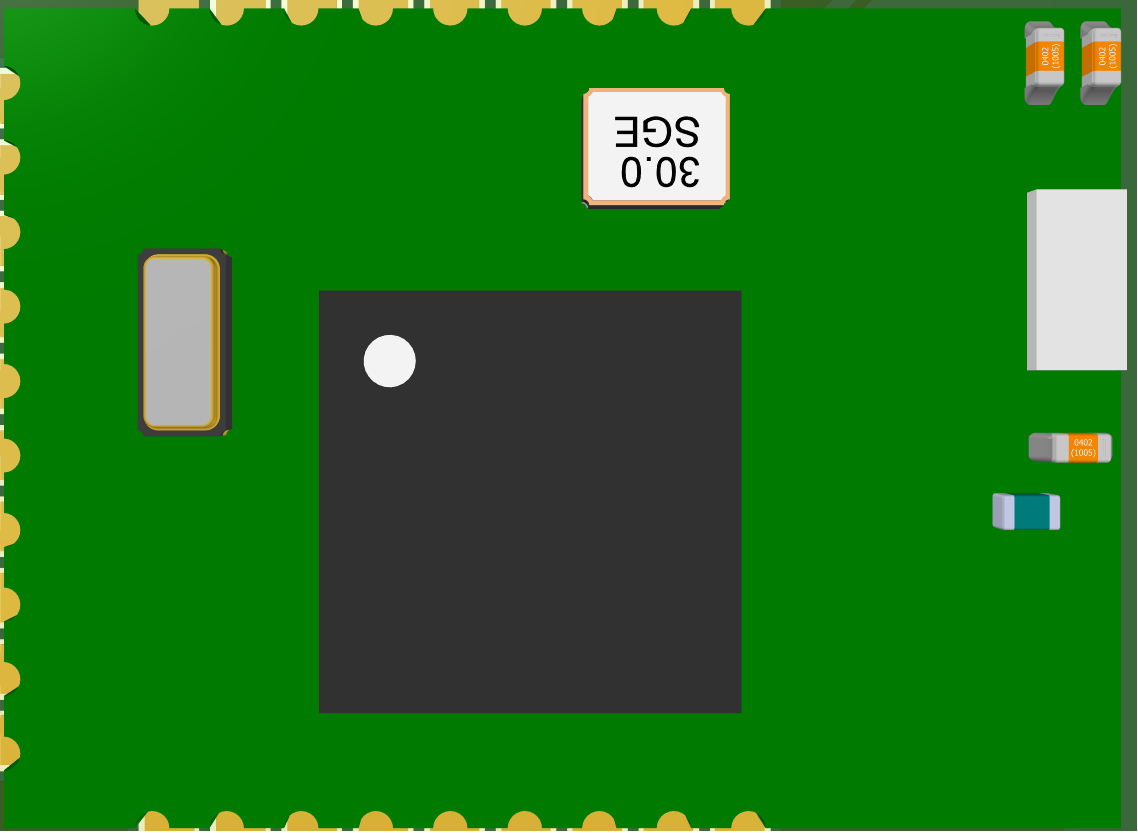

FEATURES

High-Integration Design:
Equipped with an Arm® Cortex®-M4F processor, providing powerful computing capabilities. It can run applications independently, eliminating the need for an additional microcontroller.

Multi-Protocol Support:
Capable of simultaneously running multiple wireless protocols, making it suitable for IoT devices, such as smart home systems, automation controls, and wearable devices.

Low Power Consumption:
Utilizes advanced power management technology and supports ultra-low power modes, making it ideal for battery-powered devices and extending operational lifespan.

High-Sensitivity Wireless Communication:
Features a 2.4GHz transceiver with +8dBm transmission power and -95 dBm receiver sensitivity, ensuring stable long-range communication.

Versatile I/O Interfaces:
Provides various I/O interfaces, facilitating easy connections with sensors and external devices.

Processor: 32-bit ARM Cortex-M4 with FPU

Frequency Band: 2.4GHz ISM band

Memory: 1MB Flash, 256KB RAM

Connectivity: BLE 5.0, Bluetooth Mesh, Zigbee, Thread, ANT, proprietary 2.4GHz

Operating Voltage: 1.7 ~ 5.5V

Integrated Components: Antenna, Crystal oscillators, and Passive components

Antenna: Built-in Antenna eliminates the need for external Antennas.

APPLICATIONS

SPECIFICATIONS

REFERENCE DESIGN

Detailed layout and schematic examples for integrating the module in to a PCB, including recommended PCB stackup and guidelines for antenna placement.

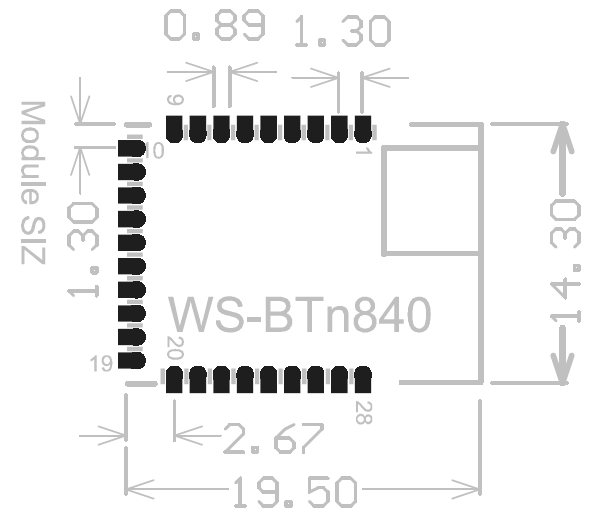

Pin DESCRIPTION

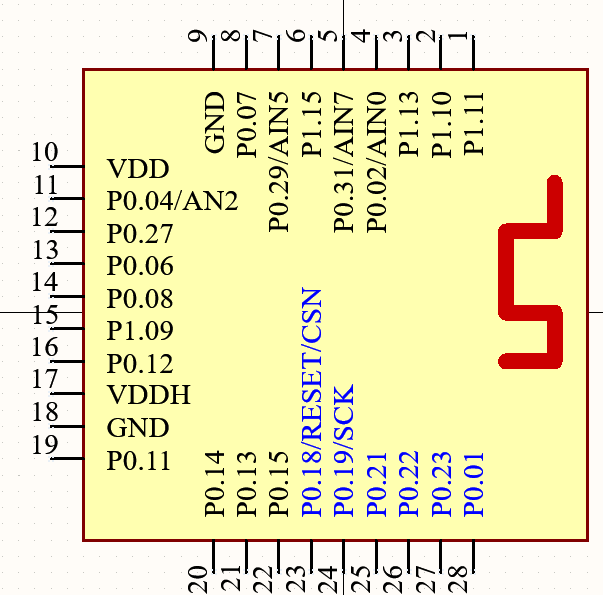

A detailed pinout diagram with descriptions of each pin (e.g., power supply pins, ground pins, and communication interfaces).

Pin ASSIGNMENT
