UHF RFID Reader Module, reader tag sensing distance up to 35 meters(with the 12dBi antenna), reading speed up to 300 Tag per second. ISO18000-6c compliant product, power 2W, operating voltage 3.6V~5.5V, interface of UART TTL, and simple AT instructions. Designed for various RFID products(eg. Access permission, stock take, product check, patrol management, automatic elevators ...etc.) With its small size, it is especially designed for handheld reader devices.
APPEARANCE

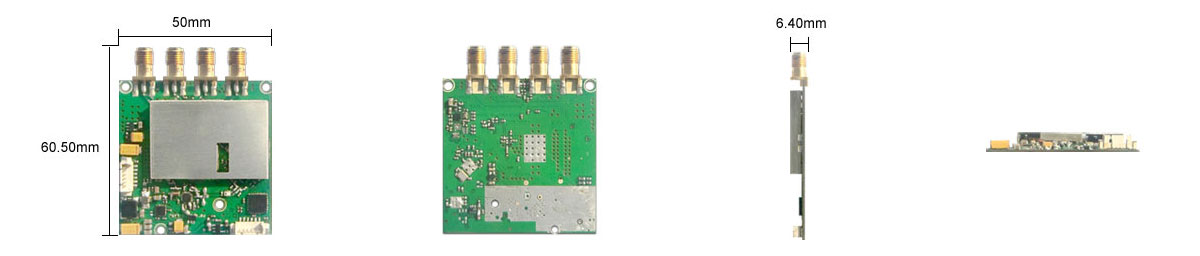

External Appearance
SPECIFICATION
Technical specifications
Working Frequency:902~928MHz
Protocol:EPC Class 1 Gen 2/ISO18000-6C/IS18000-6A/B
RF Power:2W(33dBm)
Interface: UART TTL
Reading range:35 meters(with the 12dBi antenna)
Antenna:4 antennas (40 antennas extendable)
Working voltage:3.6V~5.5V
Size:60.5*50*6.4mm
