UHF RFID Reader Modules complies with EPC Class 1 GEN2,ISO18000-6C and IS18000-6A/B, Driverless car, Airport automated baggage sorting, mechanical equipment with automatic reader, Automatic production line, vehicle like MRT, autocar, UHF RFID reader for floor tag or the equipment reads the module, the additional options of main tool : measuring-distance laser, the longest distance available: 2M (max); reading general RFID tag, the distance available:5M.

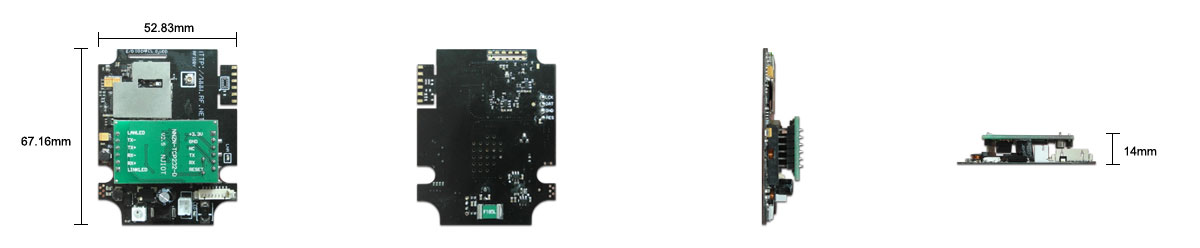

APPEARANCE
External Appearance
RJ45
RS-232
RS-485
WiFi
SPECIFICATION
Technical specifications
Working Frequency:902~928MHz
Protocol:EPC Class 1 Gen 2 ISO18000-6C IS18000-6A/B
Antenna:circular polarized antenna (RHCP)
Reading distance:5m
RF Power:23~30dBm
Interface:RJ45 / RS-232 / RS-485 / WiFi
Adaptor:12V~24V
Working temperature:-20°C~+80°C
Storage temperature:-10°C~+80°C
Humidity:20%~95%(non-condensing)
Size:67.16x52.83x14mm
