In addition, it can be collocations with our Laser Alert Device (model: WS-LA02), which uses optical shading technology to notify the RD-358 to stop operation without contact. It has automatic stop and rebound protection functions, allowing for comprehensive protection of people and vehicles.

Applications: garage door control, elevator control.

APPLICATIONS

With the WS-LA02 Garage Door Safety  Device, the rolling shutter will automatically cease operation upon contact  with a person or object during closing.

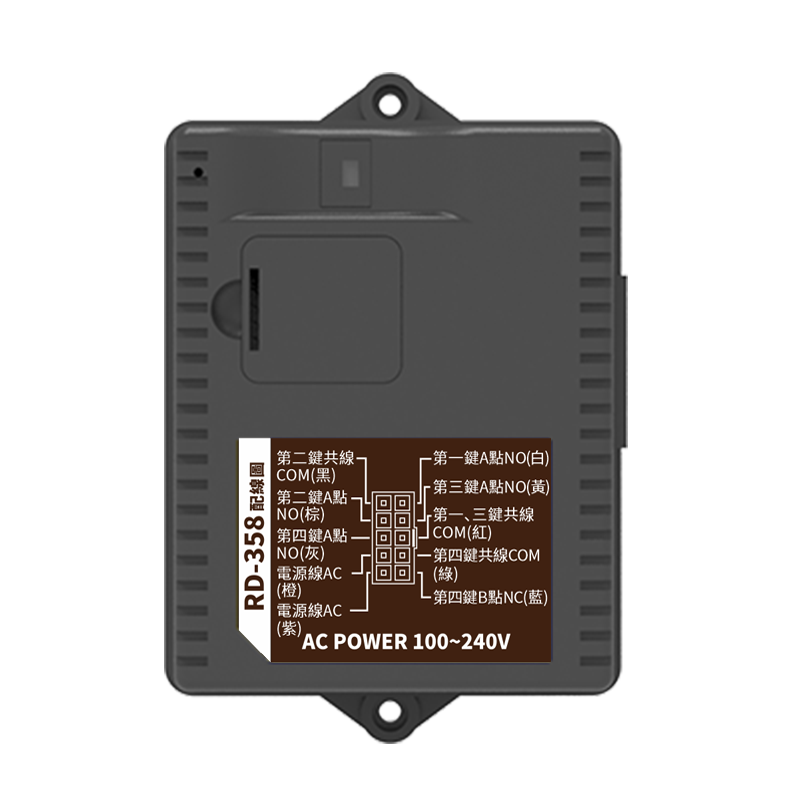

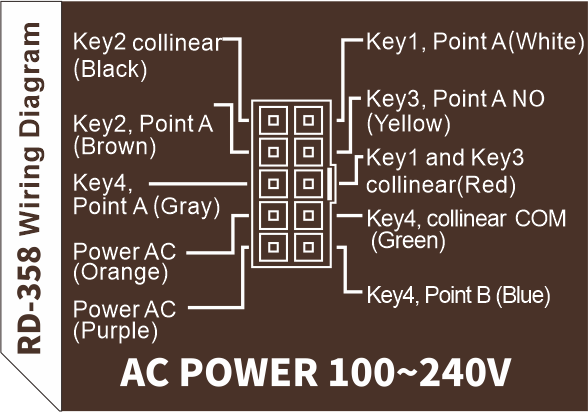

RD-358 Smart Garage Door Controller

Matching Remote Control

Function

Frequency: 372MHz

Mode Setting:

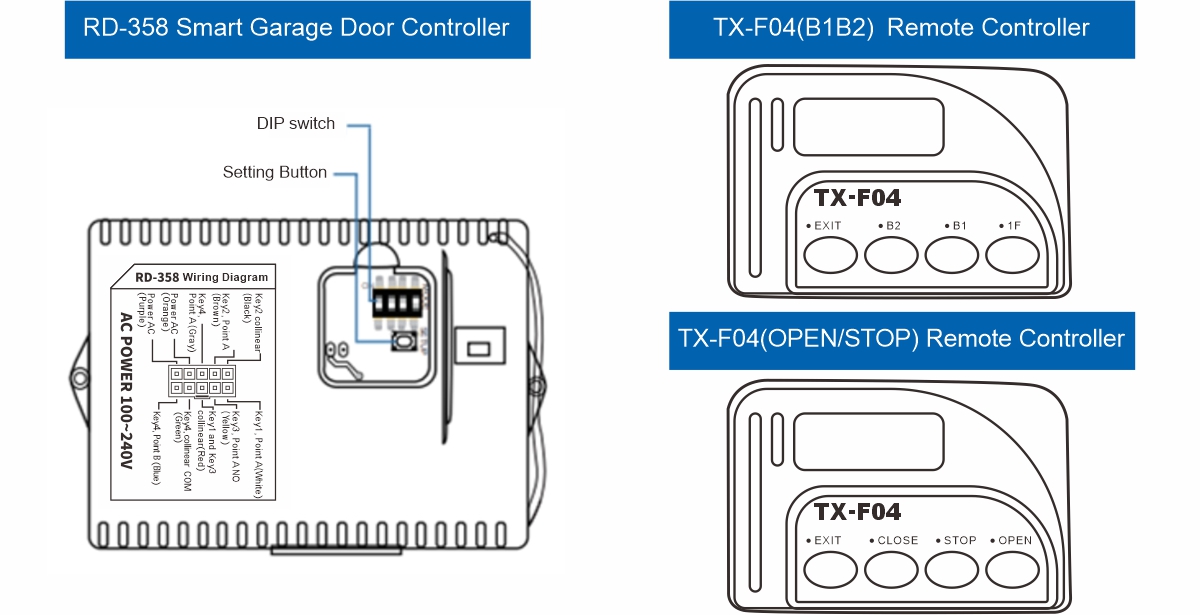

• Open the small cover of RD-358.

• The factory default mode for the RD-358 DIP switch is 2, 4.

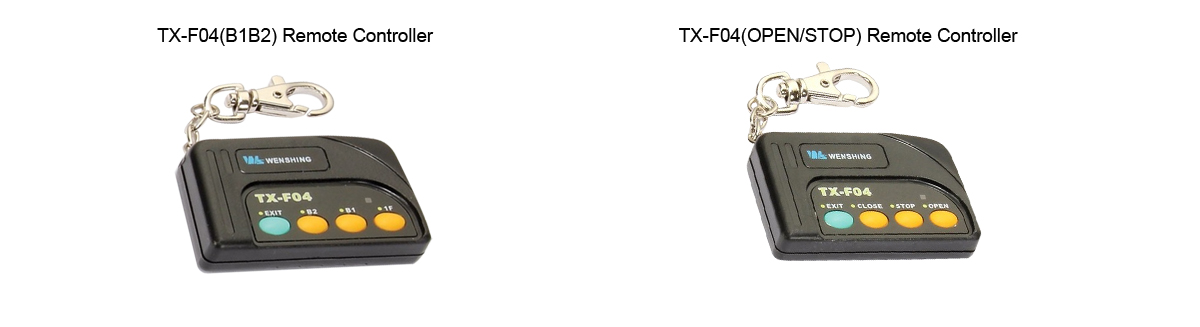

• Prepare RD-358 and TX-F04 nearby for pairing.

• Press and hold the white "Setting Button" on RD-358, the LED indicator on the right side will start flashing white. Then press the "1F" button on the TX-F04 once and release it (regardless of the password set on TX-F04, just pressing the "1F" button will allow the original password to be learned *** RD-358). When RD-358 emits a "beep" sound, it indicates successful pairing. The setup is complete, and it is ready for use.

Start the lighting: When opening or closing the door, the RD-358 lighting will automatically turn on for 10 minutes to prevent any danger caused by darkness or nighttime. When pressing any button on the remote control, the lighting will immediately turn on and automatically turn off after 10 minutes.

Laser alert device (optional): Please install under the rolling door, when an obstruction is detected during the rolling door's ascent or descent that an alarm sound will be activated, and the RD-358 relay will be remotely triggered to stop the movement. The alarm sound will stop when the obstruction is removed.

Mode Table for 372MHz:

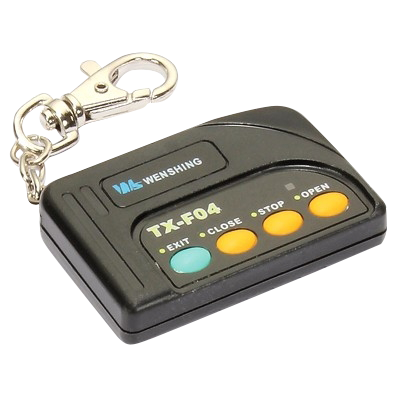

Pairing RD-358 Garage Door Controller with TX-F04 Remote Control

DIP switch				Function Explanation
switch 1	switch 2	switch 3	switch 4

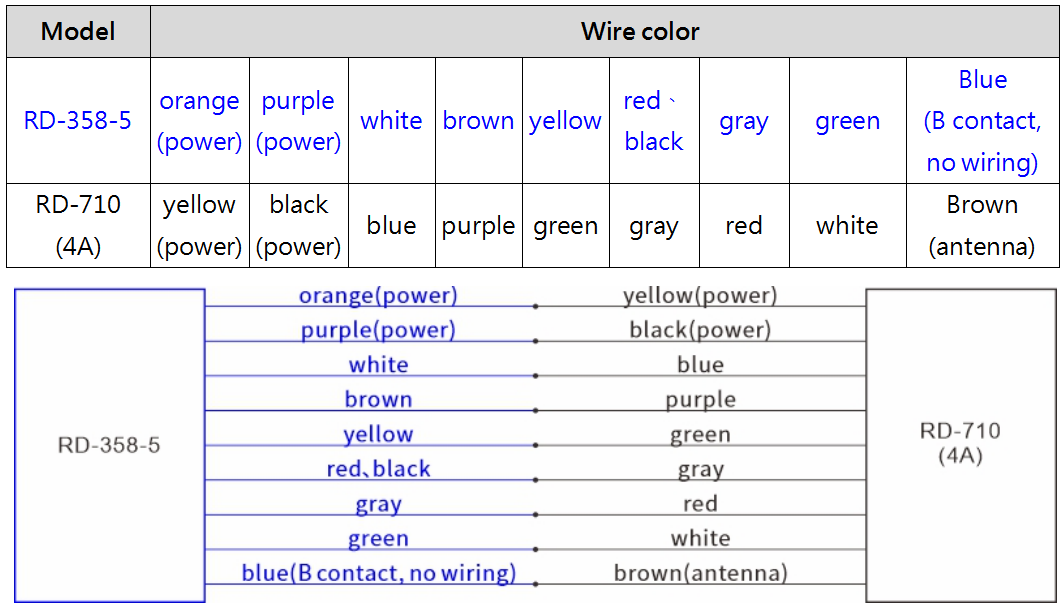

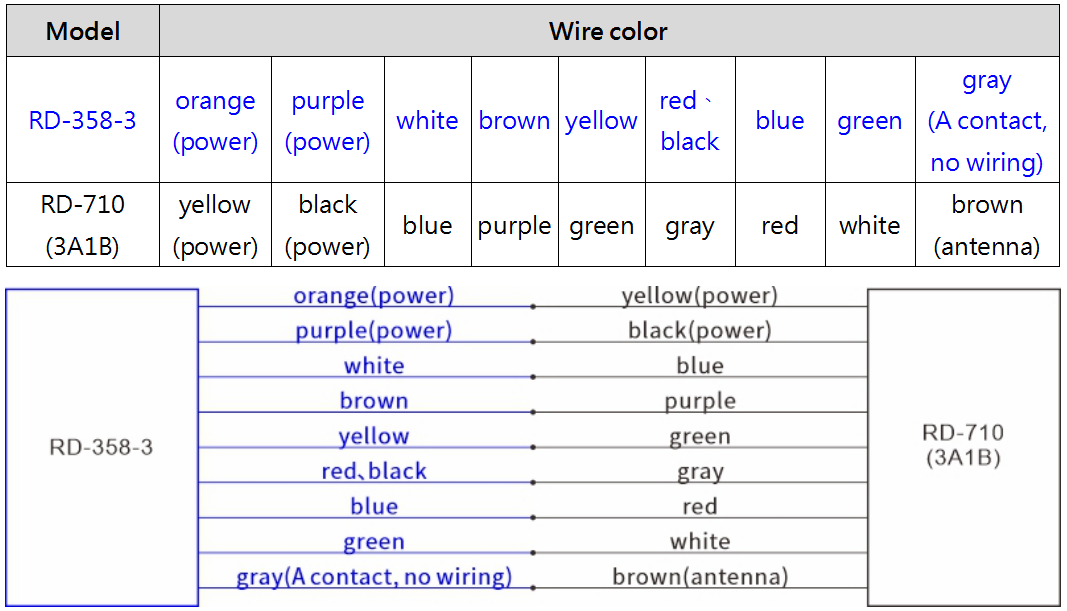

X	ON	X	ON	Connect the blue wire and the green wire together to NC. Compatible with RD-710 (3A1B type).
X	ON	X	ON	Connect the gray wire and the green wire together to NO. Compatible with RD-710 (4A type).
X	X	X	ON	Compatible with RD710 (General type).

Working frequency: 433.9MHz

Mode setting：

• Open the cover of RD-358.

• The factory default mode for the RD-358 DIP switch is 2,4.

• Place the RD-358 and TX-L04M nearby, ready for pairing.

• Press and hold the "Setting Button" on the RD-358 without releasing it. After 2 seconds, the LED indicator on the RD-358 will flash slowly in white, indicating it is in pairing mode.

• At this point, press the "Setting Button" on the remote controller (model: TX-L04M) to start pairing. When the RD-358 emits a "beep" sound, it indicates successful pairing, and the setup is complete. Now it's ready for use.

Start the lighting: When opening or closing the door, the RD-358 lighting will automatically turn on for 10 minutes to prevent any danger caused by darkness or nighttime. When pressing any button on the remote control, the lighting will immediately turn on and automatically turn off after 10 minutes.

Laser alert device (optional): Please install under the rolling door, when an obstruction is detected during the rolling door's ascent or descent that an alarm sound will be activated, and the RD-358 relay will be remotely triggered to stop the movement. The alarm sound will stop when the obstruction is removed.

Mode Table for 433.9MHz:

Pairing RD-358 Garage Door Controller with TX-L04M Remote Control

DIP switch				Function Description
switch 1	switch 2	switch 3	switch 4
X	X	X	X	button 1 for "up", button 3 for "stop" (non-latching), button 2 for "down", button4 for "stop" (latching). Pressing button 4 again and the relay will pop open.
ON	X	X	X	button 1 for "up", button 2 for "stop", button 4 for "down", button4 for "interlock" (if interlock function is not needed, press button 4 to individually control the action of each relay).
X	X	ON	X	Enable  the automatic door closing function. Press button 1 for "up", button 3  for "stop", button3 for "down". The door will automatically  close after 10 seconds when it reaches the top.
ON	X	ON	X	Enable  the automatic door closing function, press button 1 for "up", button 3  for "stop", button 2 for "down", and the door will  automatically close after being fully opened for 15 seconds.
X	ON	ON	X	Enable  the automatic closing function. Press button 1 for "up", button 3 for "stop",  button 2 for "down". The door will automatically close after 30  seconds at the fully opened position.
ON	ON	ON	X	Activate  the automatic door closing function, press button 1 for "up", button 3  for "stop", button 2 for "down". The door will automatically  close after being open at the top for 90 seconds.
X	X	X	ON	When the rotary switch is set to button 4, enabling the roller door anti-rollover function independently, RD-358 will automatically record the opening and closing time. If the time exceeds 3 seconds, the door will automatically stop and emit a warning sound and light prompt until any button on the remote control is pressed to cancel the alarm.

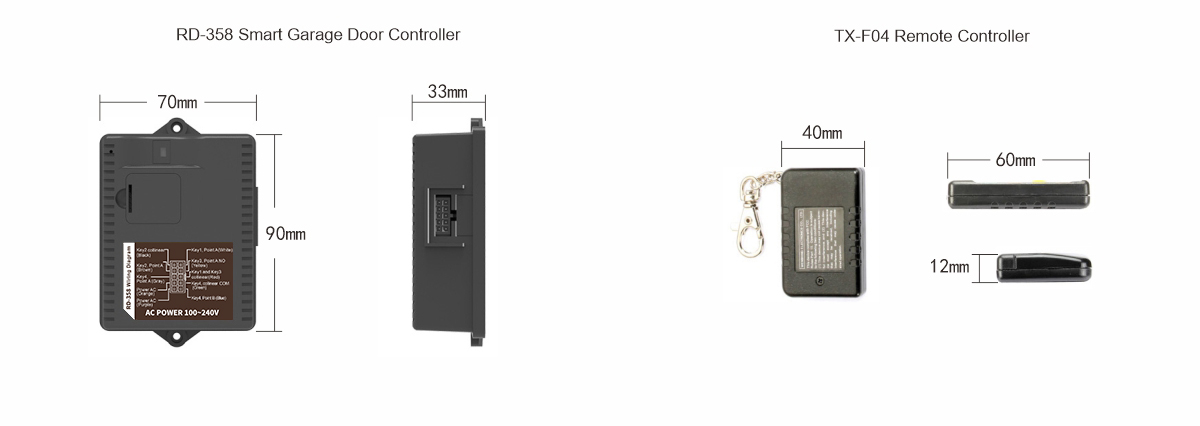

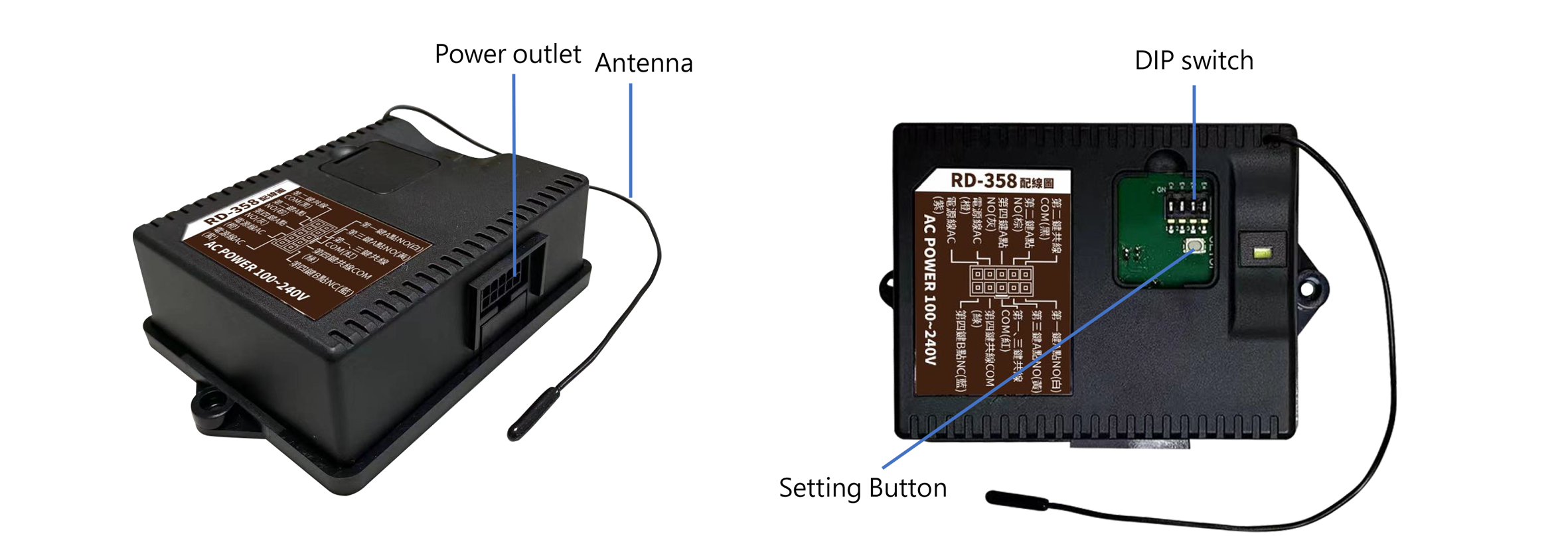

APPEARANCE
