APPEARANCE

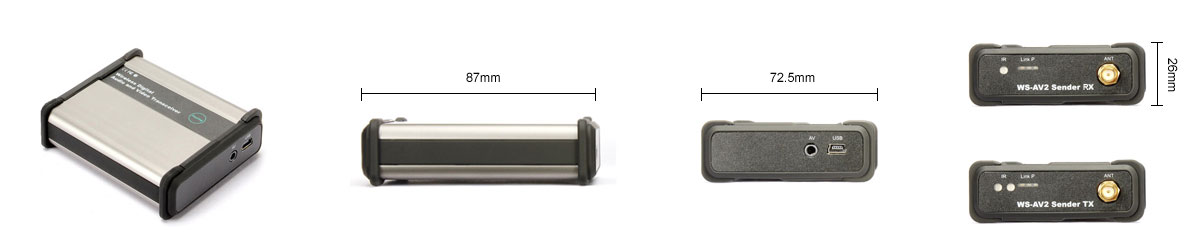

External Appearance

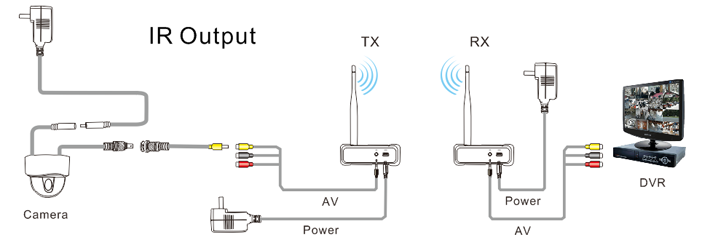

IR Extender

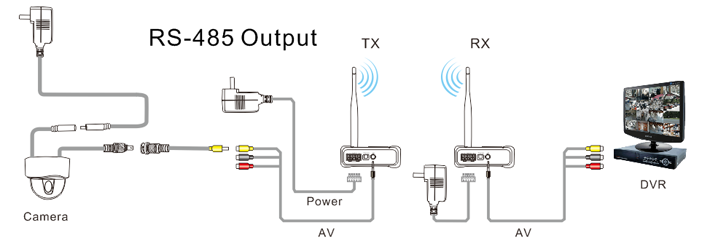

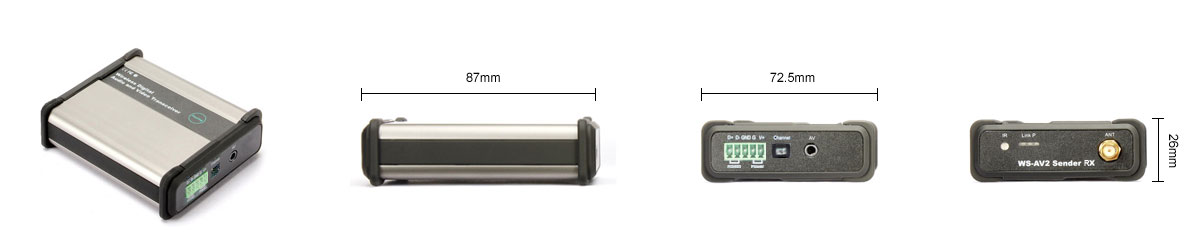

RS-485 Extender
FEATURES
Application
SPECIFICATION
Technical specifications
2.4GHz wirelessly transmission of audio and video; auto frequency hopping minimized interference.
IR / RS-485 extender
Digital encrypted function ensures safety and reliability.
Synchronizing for both audio and video transmission.
Long range transmission, up to 500 meters line of sight; 2KM with specialized directional antenna.
Crystal clear video resolution with high frame-per-second rate. Maximum 30 frames at D1 resolution (720 x 480).
Clear and stable signals that penetrate walls, doors, ceilings, and floors.
Plug and play, easy set up requires no software.
Support video transmission of PAL/NTSC system.

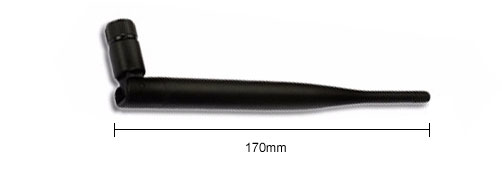

High-gain antenna ensures stable signal transmission and reliability.
Avoid the wire mess while still maintaining a high level of audio fidelity.
Modern and metallic look.
Compatible with any sources with AV outputs including satellite receiver, CATV box, surveillance camera, VCD, DVD, DVR, CCD camera, IPTV, Personal computer, satellite STB, digital TV STB, Blue-ray players, Gaming console, HD network media player and other similar devices.
Transceiver
Video input connector:3.5mm Phone jack
Audio input connector:3.5mm Phone jack
Antenna connector:SMA
Consumption current:500mA
Power supply: 90~264Vac/5Vdc 1A
Button:Pairing button、Group switch
Interface:IR / RS-485
Receiver
Video output connector:3.5mm Phone jack
Audio output connector:3.5mm Phone jack
Antenna connector:SMA
Consumption current:500mA
Power supply: 90~264Vac/5Vdc 1A
Button:Pairing button、Group switch
Interface:IR / RS-485
LED Indicator:Power and connecting
Video output Resolution:Maximum 30 frames at D1 resolution ( 720 x 480 )
Video output Level:1±0.3V p-p 75 ohm
Latency:300ms normal
Other
Frequency:ISM 2400-2483MHz Hopping
Transmission power:<500mA
Modulation:QPSK
Maximum distance:Open space up to 2400ft
Image processor:H.263 encode/decode
