RTLS real-time positioning RFID system

Model:
WS-RTLS-125K
WS-RTLS-A
WS-RTLS-ROBOT

WENSHING RTLS real-time positioning RFID system is a key component of the digital infrastructure of modern factories. This system combines functions such as item search and location, automatic registration of item location, vehicle usage efficiency, etc., to achieve real-time, accurate, and reliable, Flexible high-performance management, to strengthen the competitiveness of enterprises.

This system is designed for transport vehicles (such as electric pallet trucks, electric forklifts, electric trailers, etc.) that cannot be registered in the process of moving goods. It perfectly realizes the purpose of real-time positioning of goods, which can effectively reduce the time to find goods and provide instant feedback the location of the vehicle, the improvement of the time it takes for the vehicle to find items, and the long route of the vehicle, detours, etc., save a lot of manpower and man-hours.

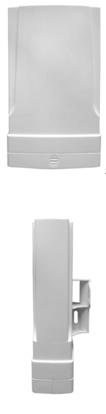

    RTLS Real-time Location Host

    Model: WS-RTLS-125K

l  The accuracy is up to 10CM,  and the positioning time is 4ms.

l  The whole machine is  waterproof and can be installed outdoors or in high humidity and high  temperature environments with an accuracy of 10cm. Built-in temperature sensor,  compass sensor, G sensor, and tilt sensor.

l  Built-in compass, hygrometer, thermometer,  vibration sensor, tilt angle meter.

l  Interface: RJ45 (support  webpage setting function network), RS-485.

l  Built-in LF 125KHz safety fence, can be set to  1~8 meters distance of Tag.

l  Ultra-long distance, with a straight-line  distance of 620 meters.

l  Built-in voice prompt, 6W LED strong light  prompt, wide 12~36V working voltage.

l  Waterproof and rainproof.

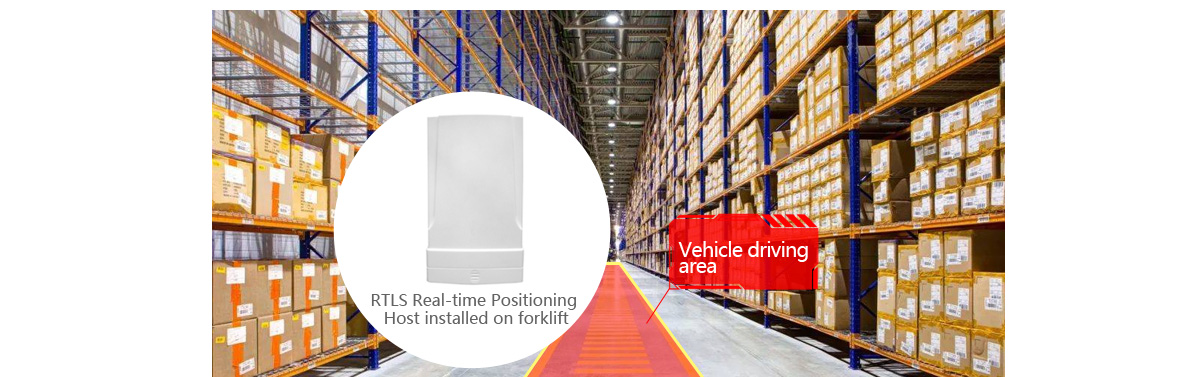

l  Installed on vehicles (such as electric  pallets, electric forklifts, electric trailers, etc.)



RTLS Real-time Location Host    Model: WS-RTLS-125K

Application

Features/Specifications

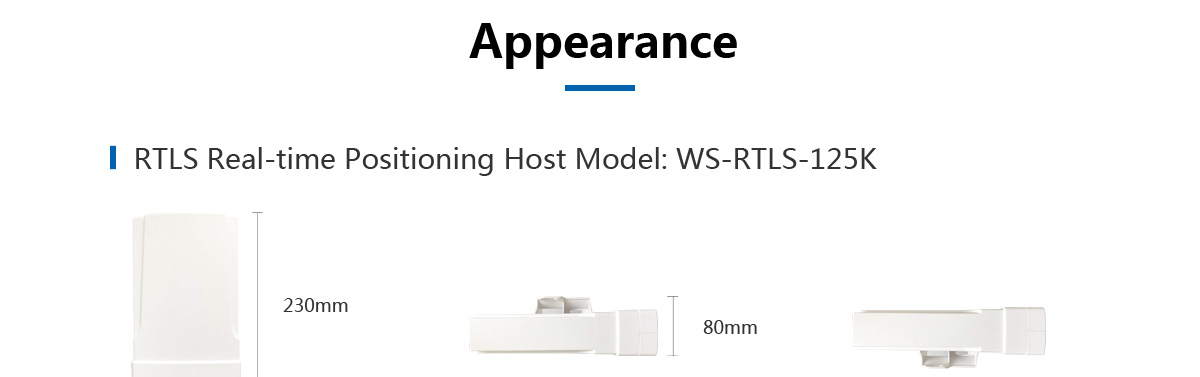

Appearance

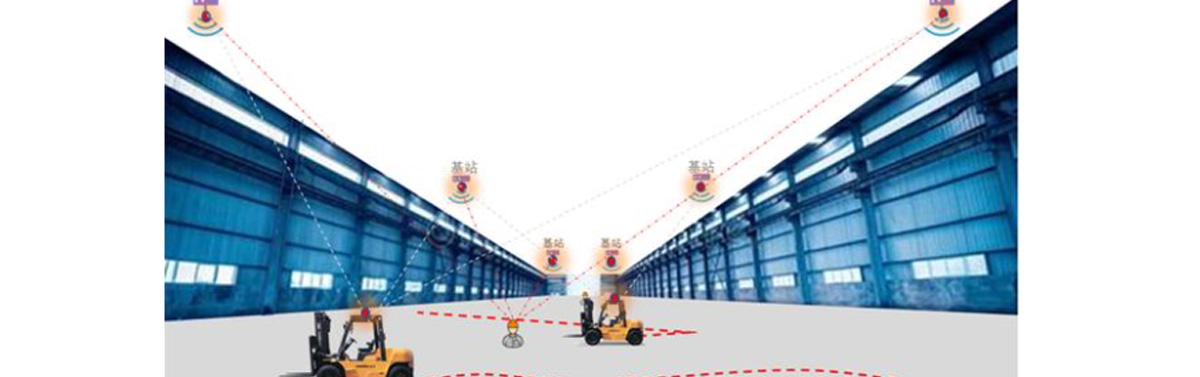

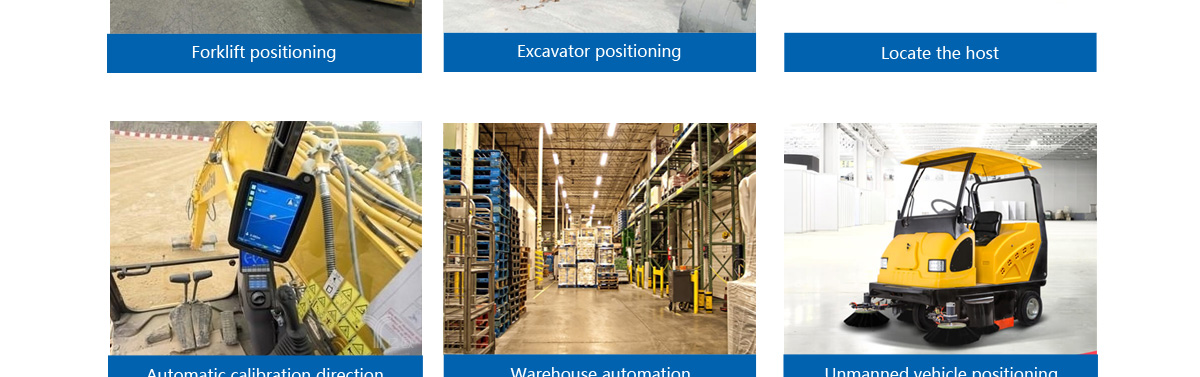

  • Forklift positioning

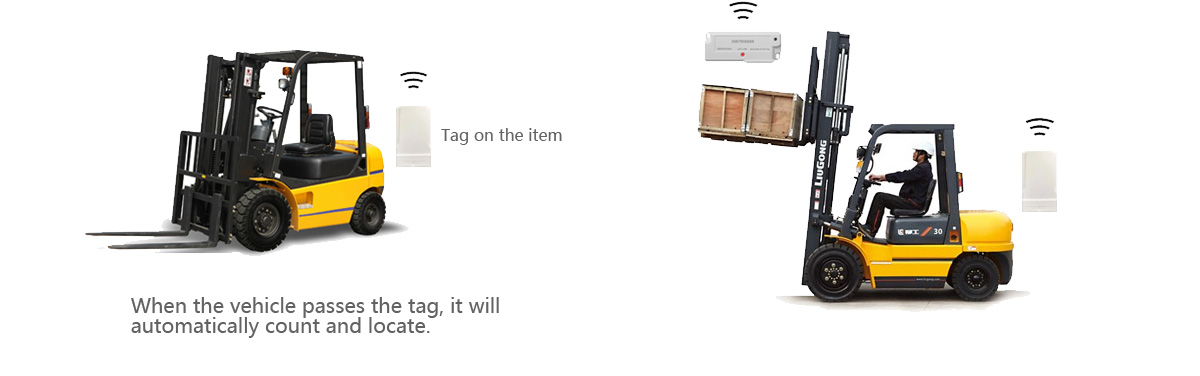

  • Automatic registration of item location

  • Positioning of the excavator

  • Automatically correct the direction of excavation

  • Coordinate base station

  • Automated warehouse management

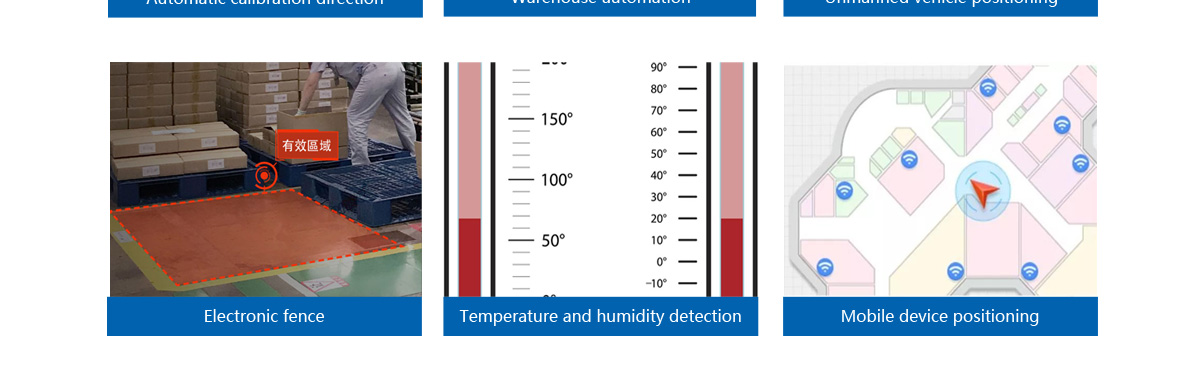

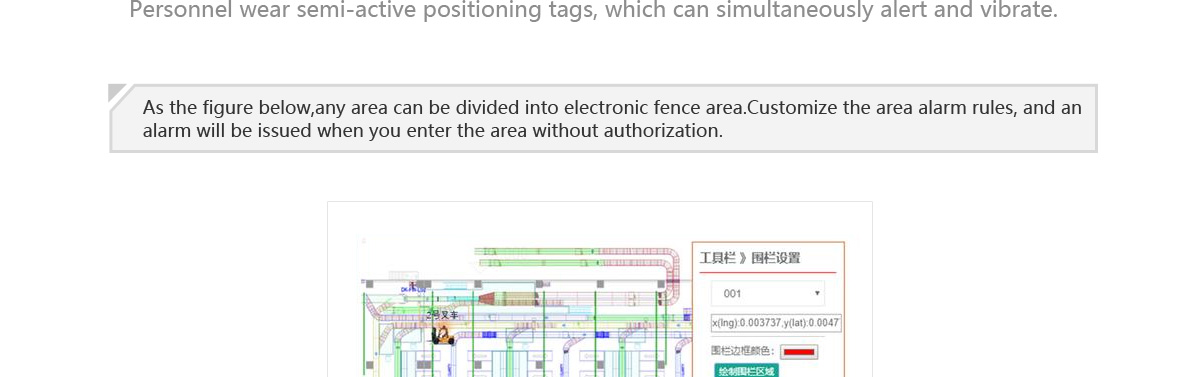

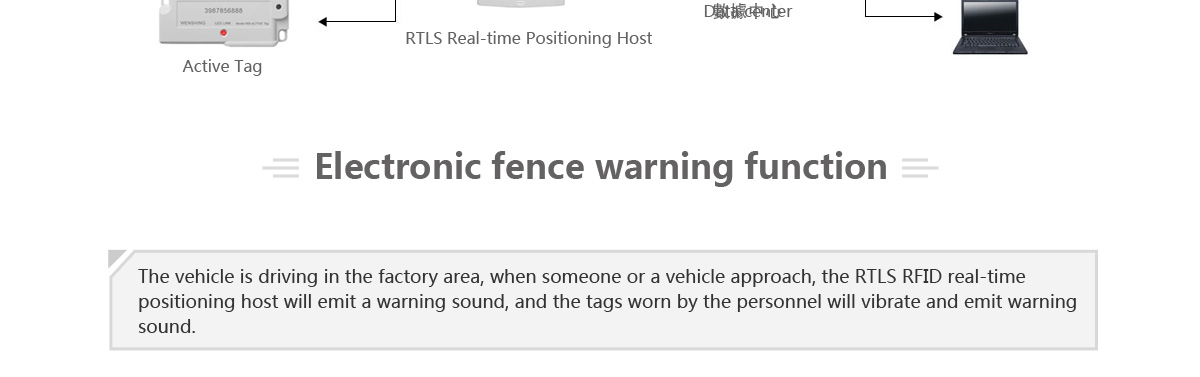

  • Electronic fence

  • Temperature and humidity detection

  • Unmanned vehicle positioning reference point

  • 900MHz frequency hopping of wireless ISM RFID channel (1K hops/time per second)

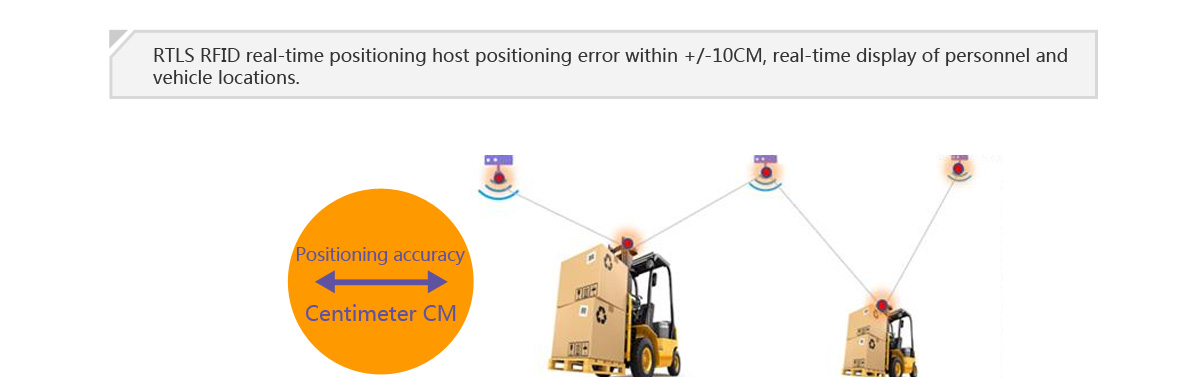

  • Positioning accuracy 10CM

  • Positioning time 4ms

  • Built-in compass, hygrometer, thermometer, vibration sensor, tilt angle meter.

  • Wide working voltage 12~36V.

  • Interface: RJ45 (support webpage setting function network), RS-485.

  • Wireless IEEE 802.11

  • 6W LED reminder lighting

  • Voice dialing warning

  • Built-in LF 125KHz safety fence, the distance label can be set to 1~8 meters.

  • Waterproof and rainproof

  • With the WENSHING’s ultrasonic ranging sensor, it can command the forklift to detect whether there are any items on board.

  • Equipped with WENSHING’s wireless sensor, it has the function of anti-collision detection for people behind the vehicle.

  • Size: 233 L * 140.7 w * 80 t / mm

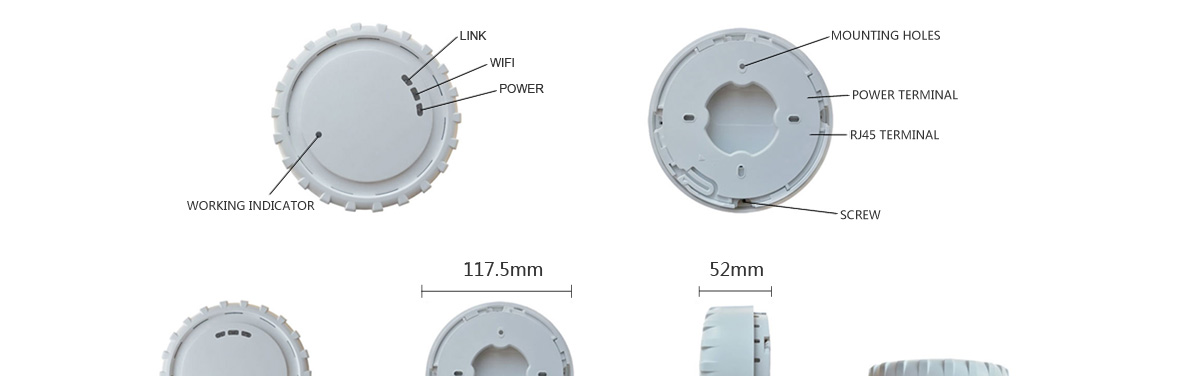

    RTLS Real-time Positioning Host

    ModelWS-RTLS-A

l  The accuracy is up to 10CM, and the positioning time is 4ms.

l  Built-in 360-degree cup antenna, there is no antenna directivity problem, improve the reception sensitivity and extend the distance.

l  Built-in temperature sensor.

l  Built-in voice prompt, wired or wireless network communication function.

l  Installed on vehicles (such as electric pallets, electric forklifts, electric trailers, etc.), small and beautiful.

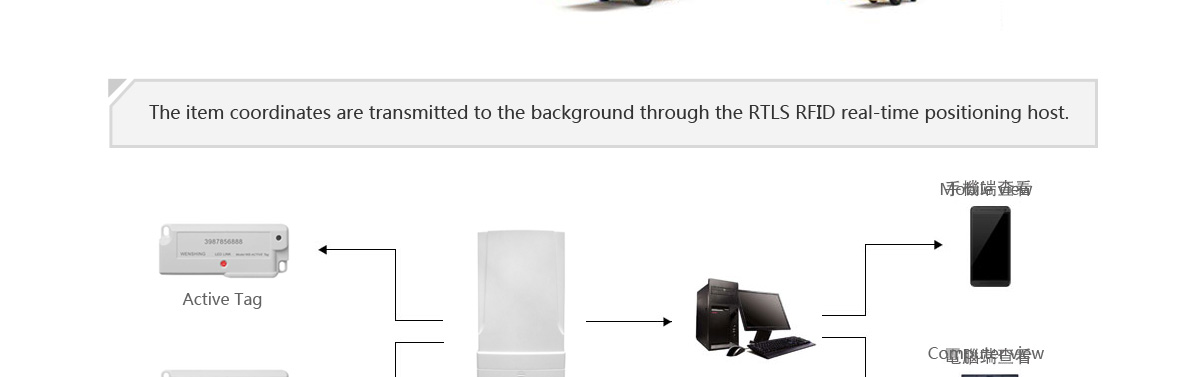

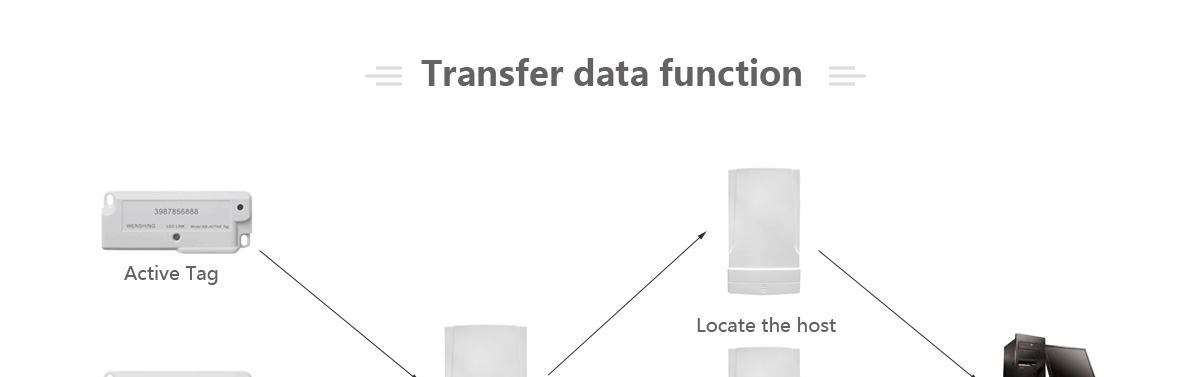

l  Different data can be transmitted to the other device, regardless of whether it is a positioning reference point, as long as it is connected to the network, the data required by the other device can be collected and sent to the background.

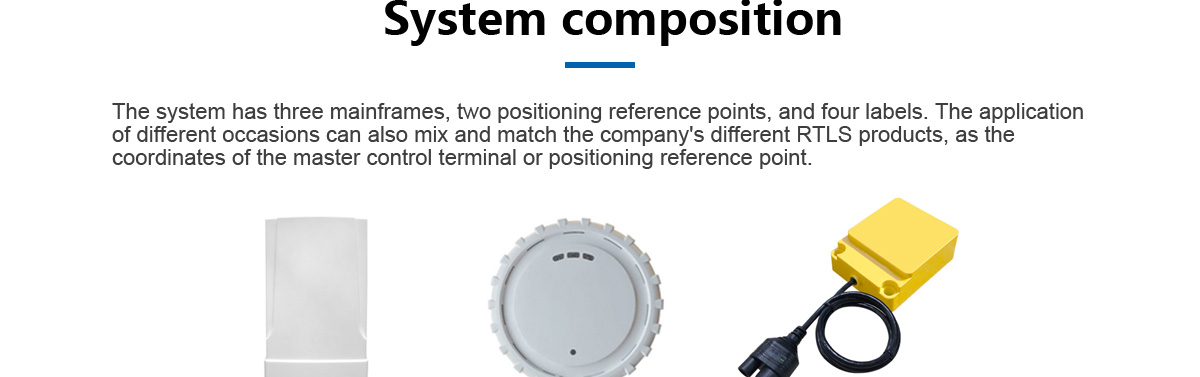

l  It can be used as the coordinate point of the master control terminal or positioning reference point when matched with WENSHING’s RTLS products, which can be used in different occasions.

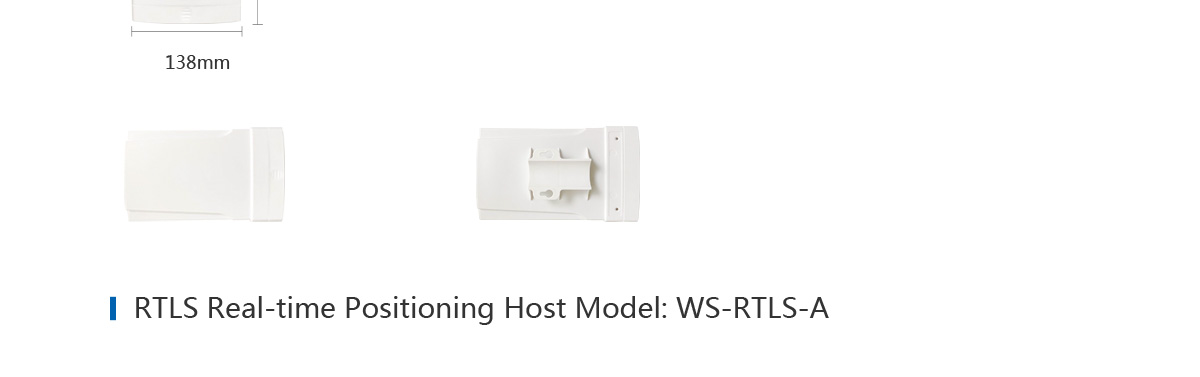

RTLS  Real-time Positioning Host    Model:WS-RTLS-A

Application

Features/Specifications

Appearance

  • Indoor coordinate reference point

  • RFID active tag collector

  • Reminders and warnings for safe areas

  • Unmanned vehicle positioning reference point

  • Indoor temperature and humidity detection

  • Indoor broadcasting

  • ISM 900MHz frequency hopping (1K hops/times per second)/specific functions

  • Positioning accuracy 10CM

  • Positioning time 4ms

  • Built-in hygrometer, thermometer, vibration sensor, tilt angle meter.

  • Voice alert

  • Wide working voltage 5~12V

  • Interface: RJ45 network

  • Wireless IEEE 802.11

  • Size: 117 diameter * 55 thickness / mm






    AGV RTLSLocate the Host

    ModelWS-RTLS-ROBOT

l  The accuracy is up to 10CM, and the positioning time is 4ms.

l  The whole machine is waterproof and can be installed outdoors or in high humidity and high temperature environments with an accuracy of 10cm. Built-in temperature sensor, compass sensor, G sensor, and tilt sensor.

l  Built-in temperature sensor.

l  Installed on vehicles (such as electric pallets, electric forklifts, electric trailers, etc.).

l  Different data can be transmitted to the other device, regardless of whether it is a positioning reference point, as long as it is connected to the network, the data required by the other device can be collected and sent to the background.

l  It can be used as the coordinate point of the master control terminal or positioning reference point when matched with WENSHING’s RTLS products, which can be used in different occasions.

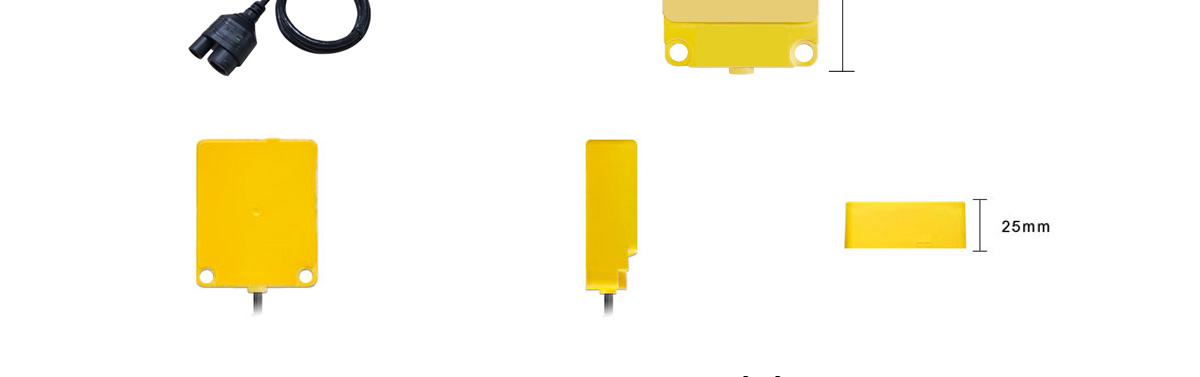

AGV RTLSLocate the Host    Model:WS-RTLS-ROBOT

Application

Features/Specifications

Appearance

  • Indoor positioning

  • Unmanned vehicle positioning

  • Mobile device positioning

  • Support ISM Band 433MHz/480MHz/916MHz/10.5GHz

  • Positioning accuracy 10CM

  • Positioning time 4ms

  • Wide working voltage 5~36V

  • Interface: RS-485 (standard product)

  • Wireless IEEE 802.11

  • Built-in thermometer, vibration sensor, compass

  • Built-in gravity acceleration detection

  • Scalable laser ranging

  • Support Ethernet 10/100Mbps automatic switching

  • Support WiFi 802.11b/g/n/d/e/i/l/r

  • Support wired/wireless network disconnection automatic switching

  • Support web page setting function

  • Support 12~18V input working voltage

  • Positioning accuracy<10CM (at least 3 positioning reference points are required)

  • Voice prompt function

  • Multi-color LED prompt function

  • Built-in tilt angle detection

  • Built-in vibration detection

  • Built-in temperature detection

  • Built-in humidity detection

  • Built-in digital compass

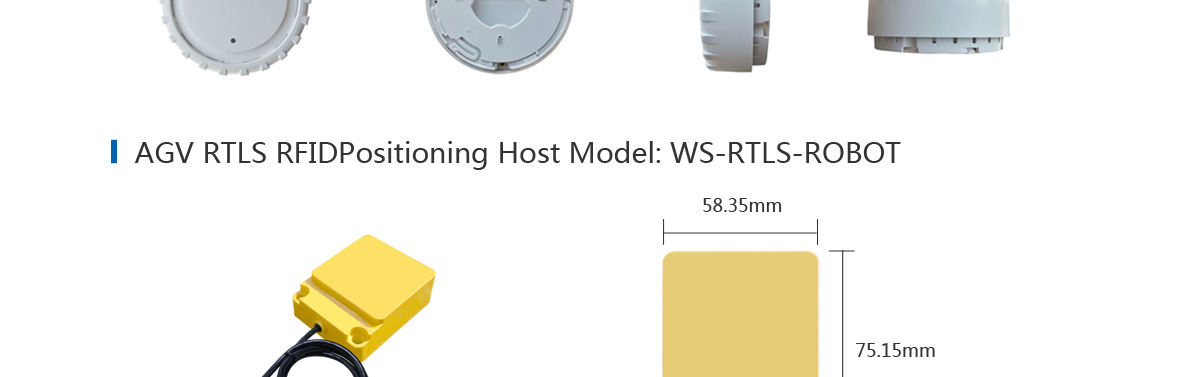

  • Size: 75.15 L * 58.35 w * 25 t / mm
