Home > Products > Industrial automation> Wireless Counter > Hawkeye Wireless Counter

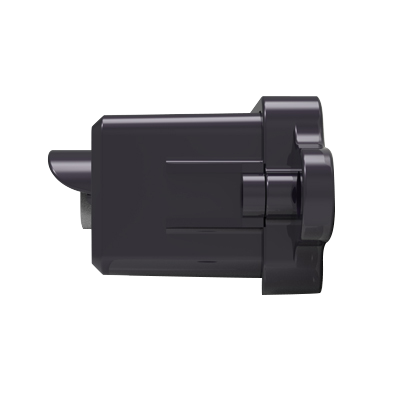

Hawkeye Wireless Counter

Model:
WS-Hawkeye-C

WENSHING launched the SMT Smart Statistics System (Model: WS-SMT) in March 2018 to improve the management of SMT production lines. In response to equipment wiring problems, the Hawkeye Wireless Counter (model: WS-Hawkeye-C) was launched in May 2021, which includes the management required by Industry 4.0 and improves production efficiency. Traditional methods often trouble the brain due to wiring or wiring problems, and even damage the equipment.

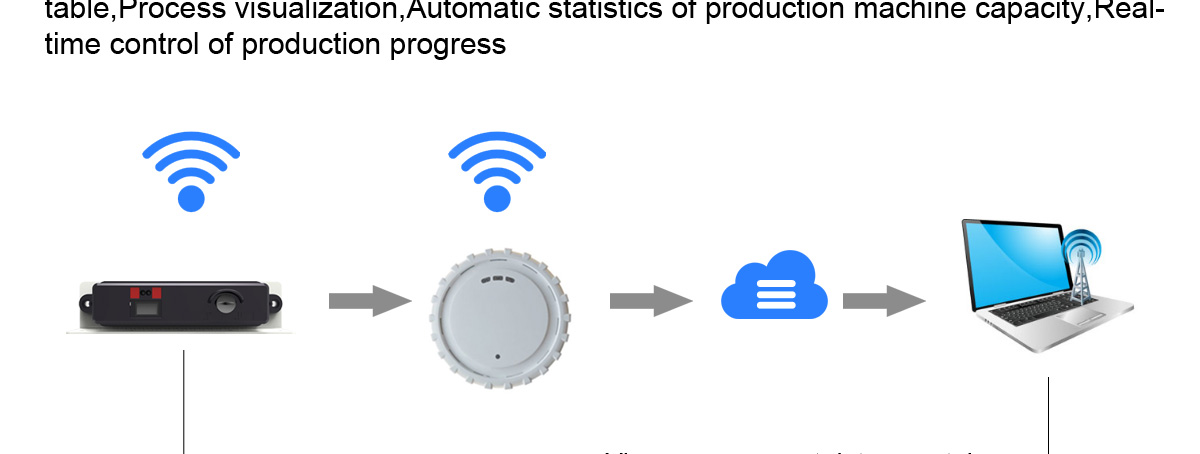

This product can know the production quantity in real time, automatically detect the production quantity, temperature, distance, brightness, tilt, and vibration of the equipment, and can pass through the Gateway Host WS- GATEWAY480 is routed to the background to analyze the production quantity, working hours, and equipment rationality, and set the counter threshold through the background. It is cooperate with forklift positioning and anti-theft to form a safety protection net, which is suitable for various applications in different industries.


Features

l  Wireless design, no wiring

l  Reflective infrared counting

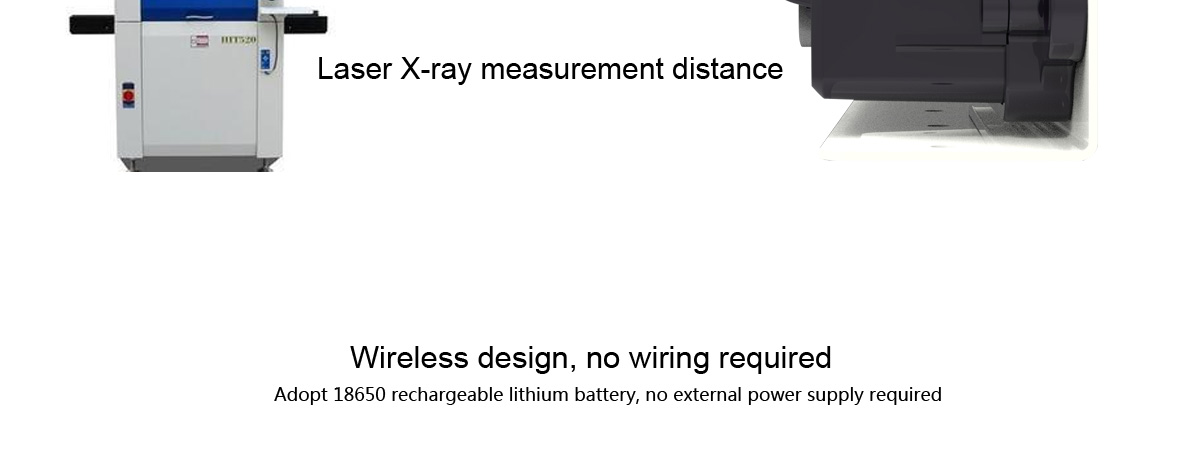

l  Laser distance measurement

l  Optical counting

l  Vibration count

l  Battery level display

l  Low potential warning

l  OLED display

l  Support remote wireless reset

l  Send wireless gateway data to the background

l  Built-in temperature sensor

l  Built-in Tilt sensor

l  Magnetic induction current

l  Waterproof

l  18650 lithium rechargeable battery, no external power supply

l  Support external input voltage 5~28V

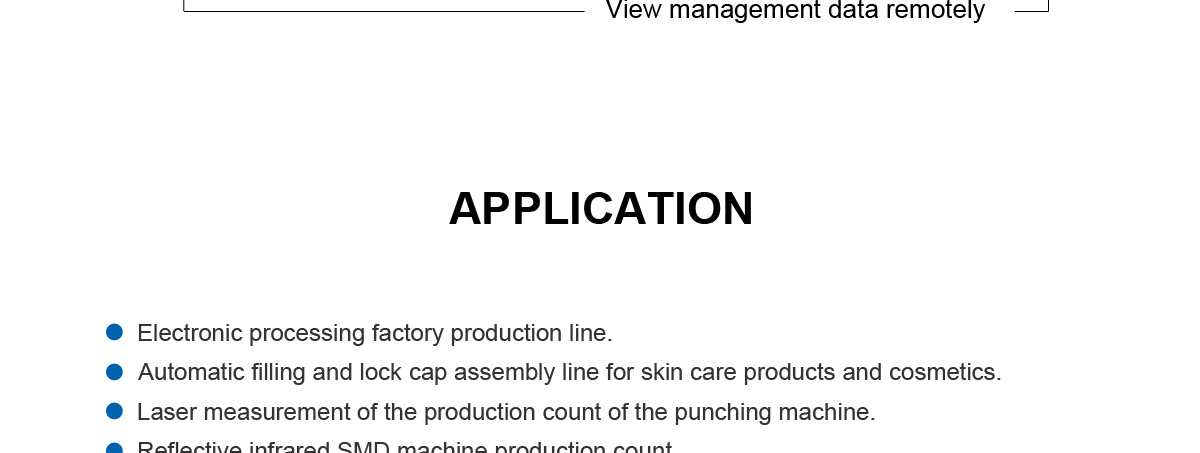

 Application

l  Counting of equipment in paper mills

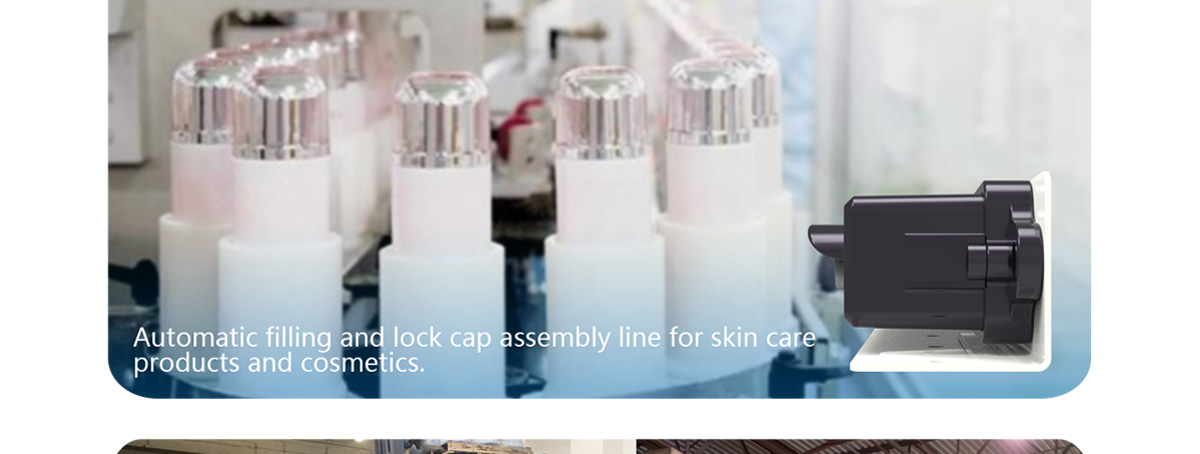

l  Automatic filling and lock cap assembly line counting for skin care products and cosmetics

l  Laser measuring punching machine production count

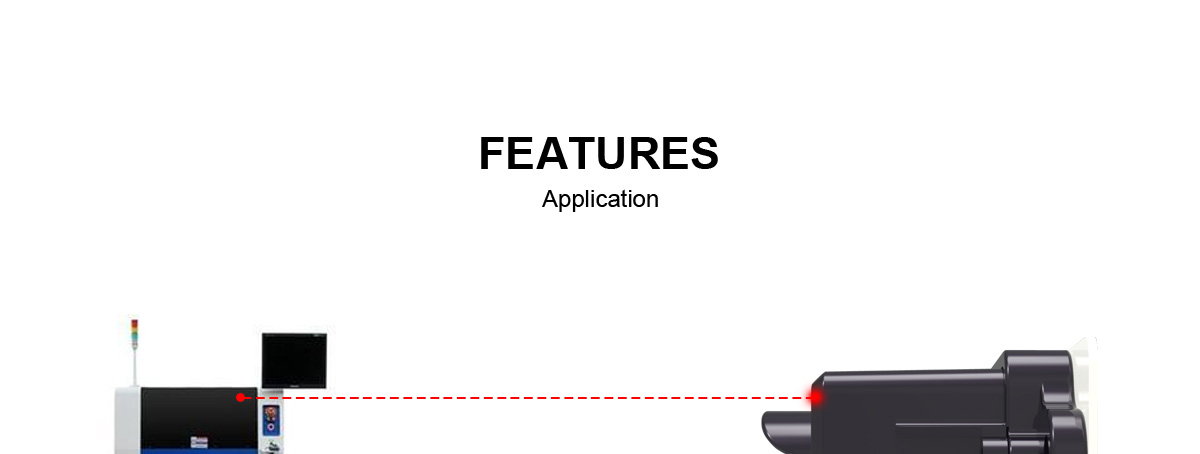

l  Reflective infrared SMT machine production count

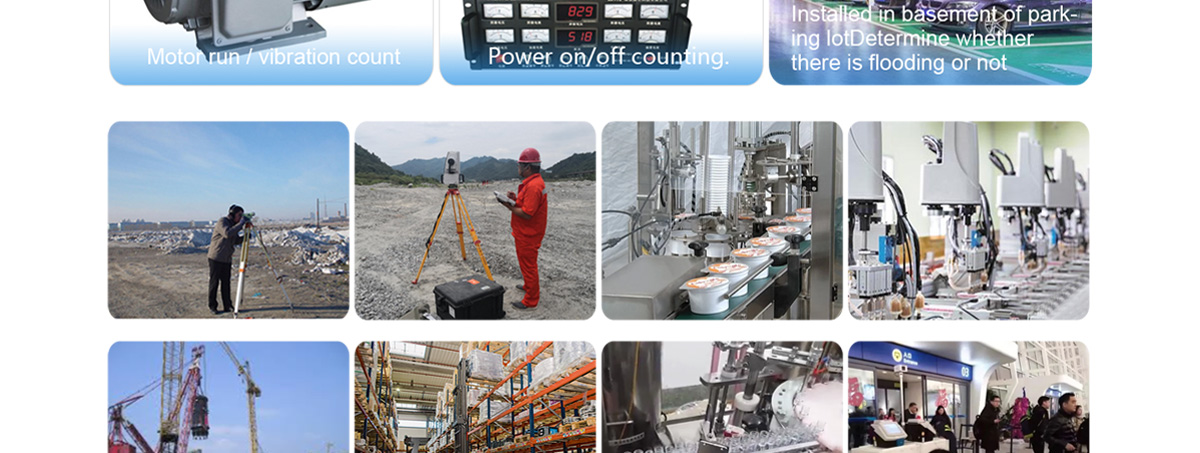

l  Motor running count

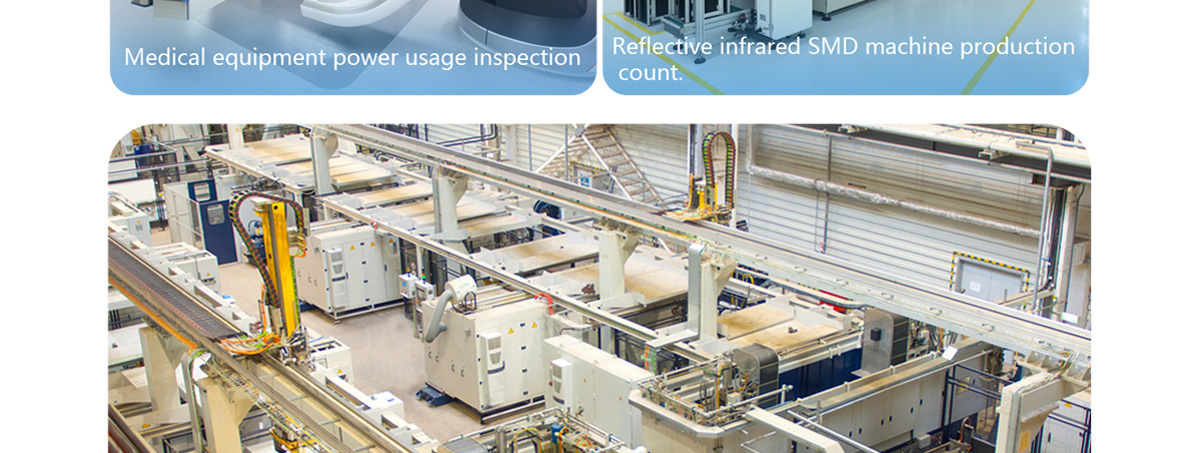

l  Power consumption detection of medical equipment (improve equipment utilization)

l  Thermal far infrared temperature measurement count or alarm

l  Power on/off counting

l  Vibration counting

l  Infrastructure related measuring instruments


Eagle Eye Wireless Sensor

ModelWS-Hawkeye-C

l   Working frequency: 480MHz

l   Modulation mode: GFSK

l   RF output power: -10 ~10dBm

l   Working voltage: DC 12 ~ 24V

l   Battery model: 18650 lithium battery

l   Standby current: 60uA

l   Sound and light indication: buzzer, 0.5 inch OLED Display

l   Communication distance: 100 meters (open space)

l   IR detection distance: 1~30cm

l   3-axis acceleration: ±2g@4096 LSB/g ~ ±32g@256 LSB/g (optional)

l   Built-in sensor: electronic compass (optional)

l   Shell material: ABS

l   Working temperature: -10~+75

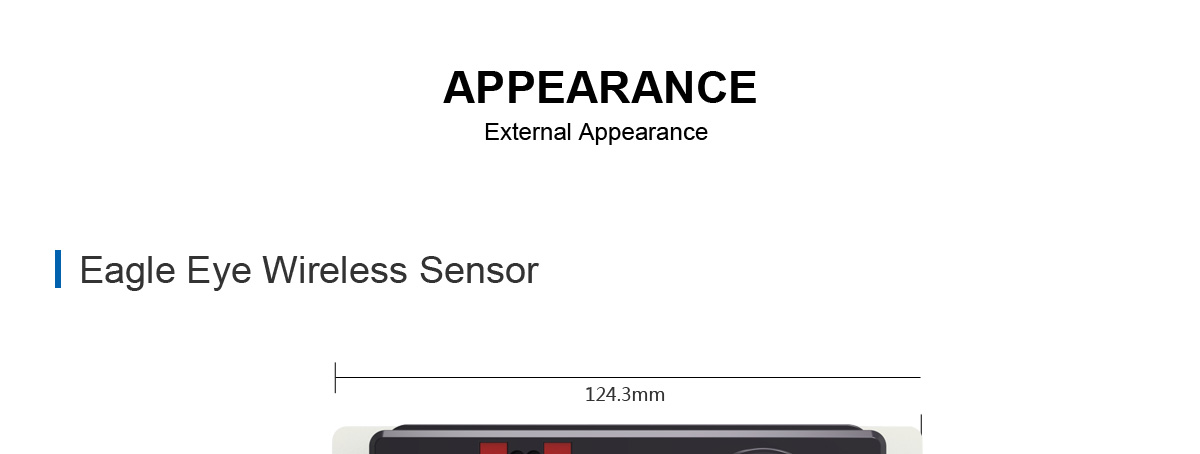

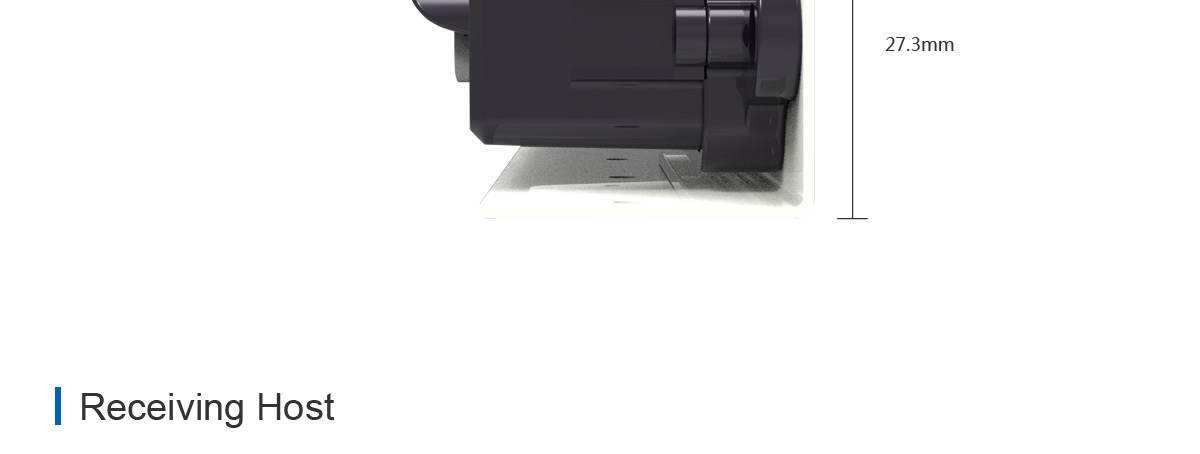

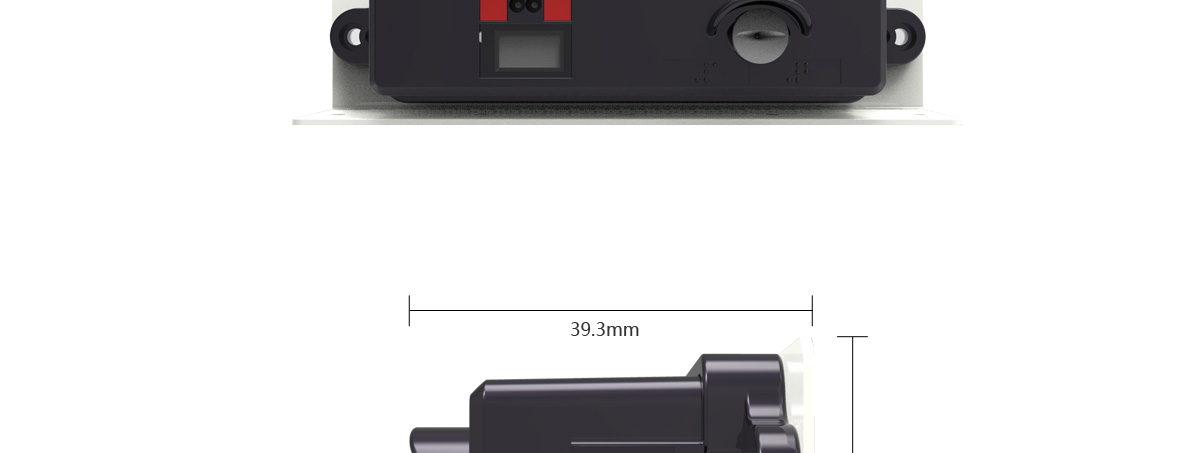

l   Size: 124.3*27.3*39.3mm

l   Weight: 84g (including battery)

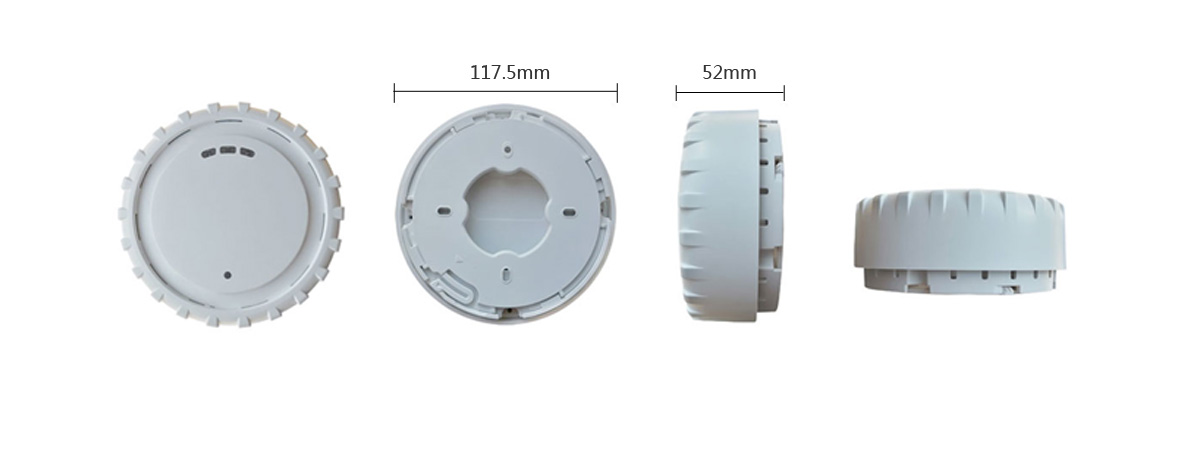

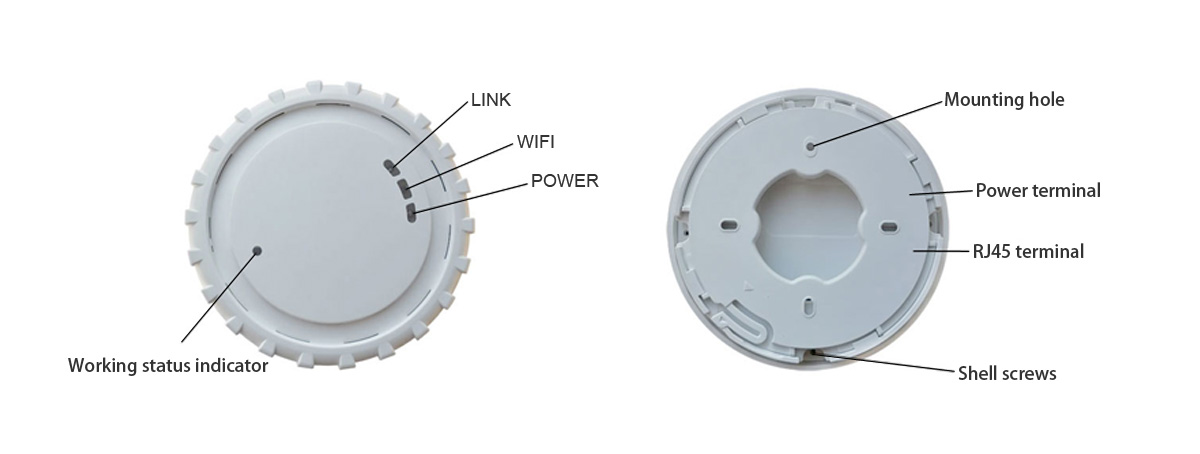

GATEWAY Host

Model: WS-GATEWAY480

l   Working frequency: 480 MHz

l   Modulation mode: GFSK

l   RF output power: 0 ~ 20dBm

l   Working voltage: DC 12V

l   Support 32 Hawkeye wireless sensors

l   Standby current: 48mA

l   Sound and light indication: voice prompt, buzzer, high-brightness LED

l   Communication distance: 100 meters (open space)

l   Wired communication interface: Ethernet 10/100Mbps

l   Wireless communication interface: WiFi 802.11b/g/n/d/e/i/l/r (optional)

l   Shell material: ABS

l   Working temperature: -10~+75

l   Size: 117.5*117.5*52mm


Ø   Eagle Eye Wireless SensorModel and Function Table

Model

Function

Application

WS-Hawkeye-C

l   Reflective infrared detection   and counting detection, distance Max. 50CM

l   Back-end command can be reset   to zero, IP65 waterproof

l   Smoke detection with an average   current of 22uA

l   SMD PCBA production count

l   Counting of punching machines

l   Smoke detection

l   Door anti-theft detection

WS-Hawkeye-U

l   Ultrasonic distance measurement   Max. 5M

l   Average current 18uA

l   Vibration detection

l   Tilt angle detection

l   Temperature detection

l   Compass

l   Ultrasonic counting

l   Counting of large equipment

l   Counting of large reel

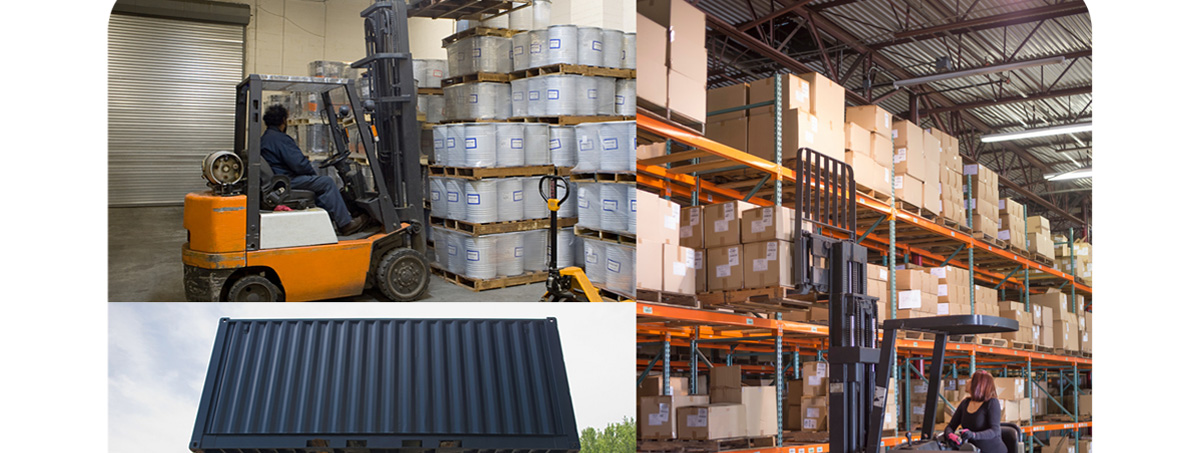

l   Forklift safety warning

l   Forklift item inspection

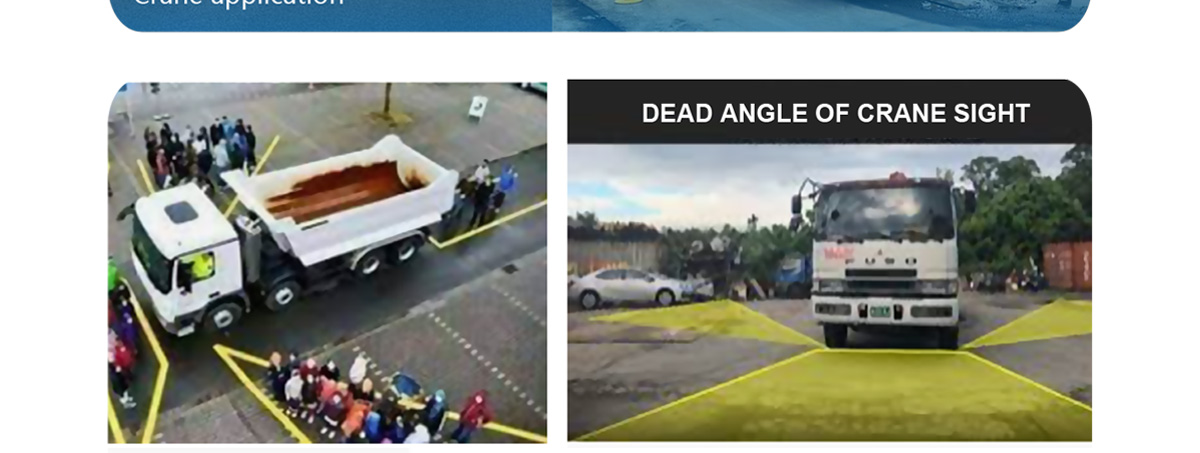

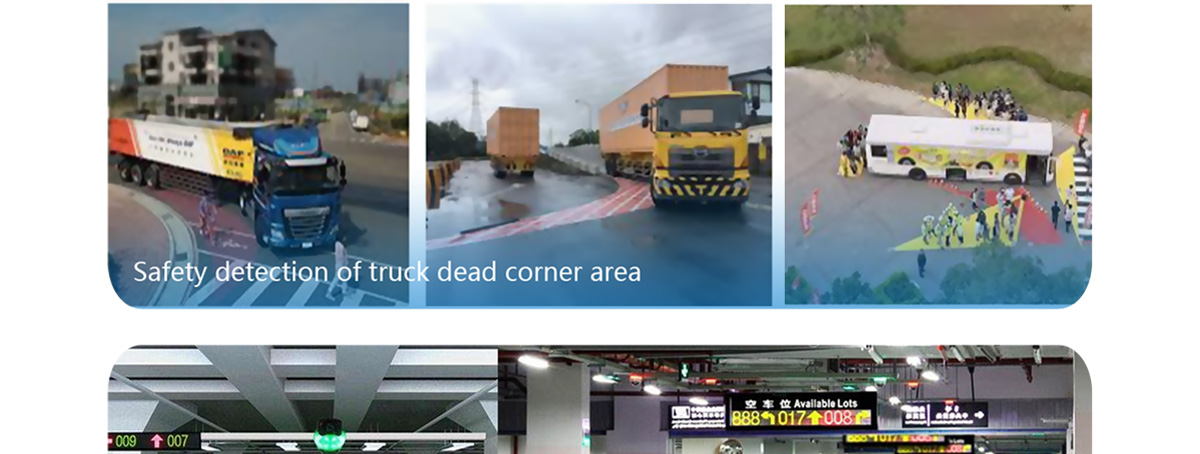

l   Safety detection of dead ends   of trucks

l   Indoor parking space detection

l   Water level height detection

l   Anti-theft use

l   Counting of people

l   Anti-pressure device for garage   door vehicles

WS-Hawkeye-L

l   Laser detection Max. 3M

l   Resolution 1CM

l   Detection point 30CM

l   Counting of production   equipment

l   Personnel points

l   Unmanned vehicles

WS-Hawkeye-S

l   Non-contact current sensing

l   Temperature sensing

l   Industrial equipment

l   Abnormal current detection of   factory total power supply

WS-Hawkeye-A

l   Height detection

l   Resolution 13CM

l   Warehouse automated forklift   height detection

l   Unmanned storage

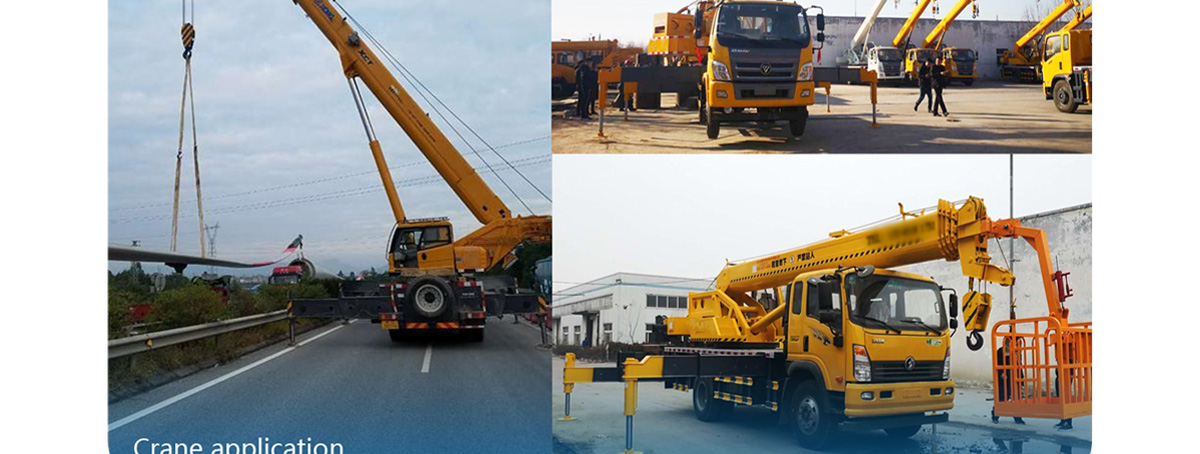

l   Crane

WS-Hawkeye-PLUS

All   of the above list functions are available


WS-Hawkeye-CO2

Carbon dioxide detector

Concentration range 400ppm~50000ppm

l   Air carbon dioxide detection in   underground parking lots

l   Underground pipeline gas   detection alarm

RF Wireless   communication

480MHz(Comply with NCC specification, other frequencies   can be customized)

l     Transmission   distance

l     Max.200M

RF   Power

Max.   18dBm

Data   Rate125Kbps

l   WS-Hawkeye-UAND

l   WS-Hawkeye-PLUS

l   RF POWER 13dBm
