Wireless Digital Video USB Receiver

Model:
WS-VIDEO-USB

2.4GHz Wireless Digital Video USB Receiver uses RF technology transmitting visual and vocal signal to the receiver. Digitalized and super anti-interference. Wireless camera sends the video signal transmitting through wireless and receiving in a long distance. Showing on the monitors; thus, it's easy to use on remote monitoring and enjoy visual and vocal effects. Instant signals of pictures and sounds with continuous and no distortion. Supporting two-way voice transmission and photographic or standby in a long distance.

APPEARANCE

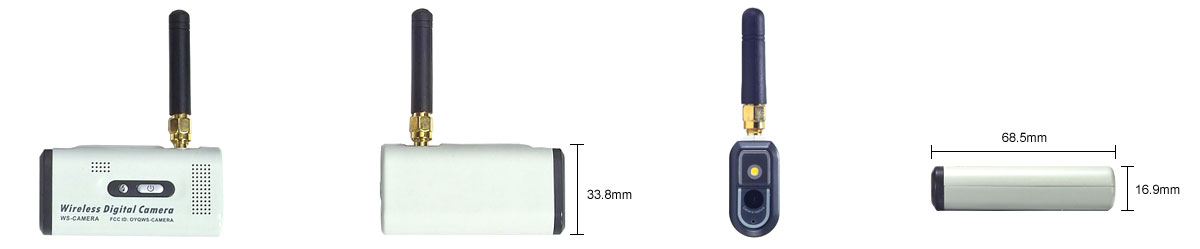

External Appearance

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMSRFID|Wireless Modules|RF Module|Wireless VIDEO

FEATURES

Application


MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMSRFID|Wireless Modules|RF Module|Wireless VIDEO

SPECIFICATION

Technical specifications

Wireless Digital Video USB Receiver Specification

  • Support system:Microsoft Windows 2000/XP/Vista/WIN7

  • Resolution: 4-split screen: 5~8 frames at 320x240 (QVGA) Single screen: 0~16 frames at 640x480 (VGA)

  • Weight:22.6g

  • Operating Temperature : 0℃~+50℃

  • Memorizing Temperature : -10℃~+60℃

  • Certification : FCC/NCC

Camera Specification

  • Frequency:ISM 2400~2483MHz hopping

  • Transmission Power : 100mW(20dBm)

  • Modulation Mode : GFSK

  • Image Sensor : 1/4" OmnVision CMOS

  • Effective pixels : 320*240(QVGA)

  • Battery:Built in 450mA Li-ion battery

  • Operation period : 1 hour

  • Illumination:white LED

  • Power supply:B Type Mini USB 5Vdc 1A

  • Dimension : 68.6mm(L)*34mm(W)*16.9mm(H)

  • Weight : 40.2g (include the battery and antenna)

  • Operating Temperature : 0℃~+50℃

  • Memorizing Temperature : -10℃~+60℃

  • Certification : FCC/NCC

RF Specification

  • Frequency:ISM 2400~2483MHz hopping

  • Transmission Power:100mW (20dBm)

  • Modulation Mode:GFSK

Advantages of wireless remote monitoring

  • Low initial cost, wireless, simple installation, easy maintenance, and strong expansion capability.

  • Connecting for usage right away, and adding wireless remote monitoring *** network that you already have. Do not require purchasing new network or other equipment.

  • Low maintaining fee. The network provider will be in charge of the maintaining of wireless remote monitoring. The front-end connects for usage right away and does not need maintaining system.

  • Sending instant information from different places through wireless communication to wireless remote monitoring and it will set visual data automatically for retrieval in the future.Camera connects with wireless video transmitter and sending information signal to monitoring center through radio waves.
