Smart Smoke Alarm

Model:
WS-SMOKE-9C(900MHz+拍照)
WS-SMOKE-9L(900MHz+LED)
WS-SMOKE-4R(433MHz+PIR)
WS-SMOKE-4L(433MHz+LED)
WS-SMOKE-4RH(旅店版+PIR)
WS-SMOKE-4LH(旅店版+LED)

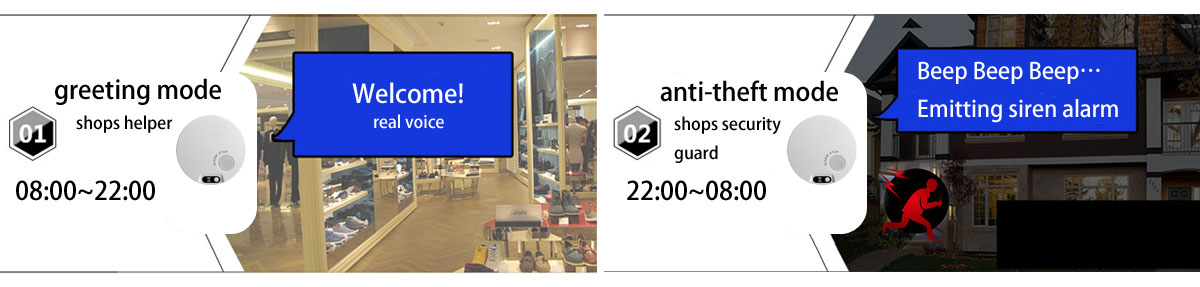

We have a wide range of ***ion for Smart Smoke Alarm series. User can *** built-in cameras or PIR detecting. It is powerful and able to be used widely on fire-fight calling and emergency calling. There is no need for human monitoring, reducing management costs, improving management efficiency, and saving human resource costs. Our product will set off audio-enable or voice-enable alarm as well as smoke detecting and temperature detecting dual functions. When smoke of temperature higher than 50 degrees Celsius is detected, the alarm will go off, and it will take pictures as well as notify backend managers. The alarm stops automatically as the temperature drops to below 50 degrees. The alarm will also go off when it detects people passing by. For example, we can set a notifying sound during daytime when visitors pass by, and switch to anti-theft alarm sounds during the night.

APPEARANCE

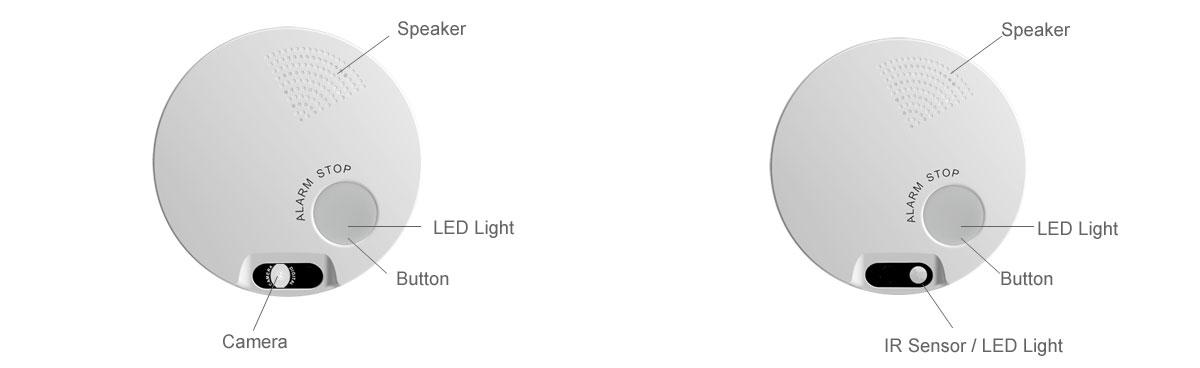

External Appearance


RFID|Wireless Modules|RF Module|Wireless VIDEO



RFID|Wireless Modules|RF Module|Wireless VIDEO


Model and Function Description

Model

Frequency

Functions

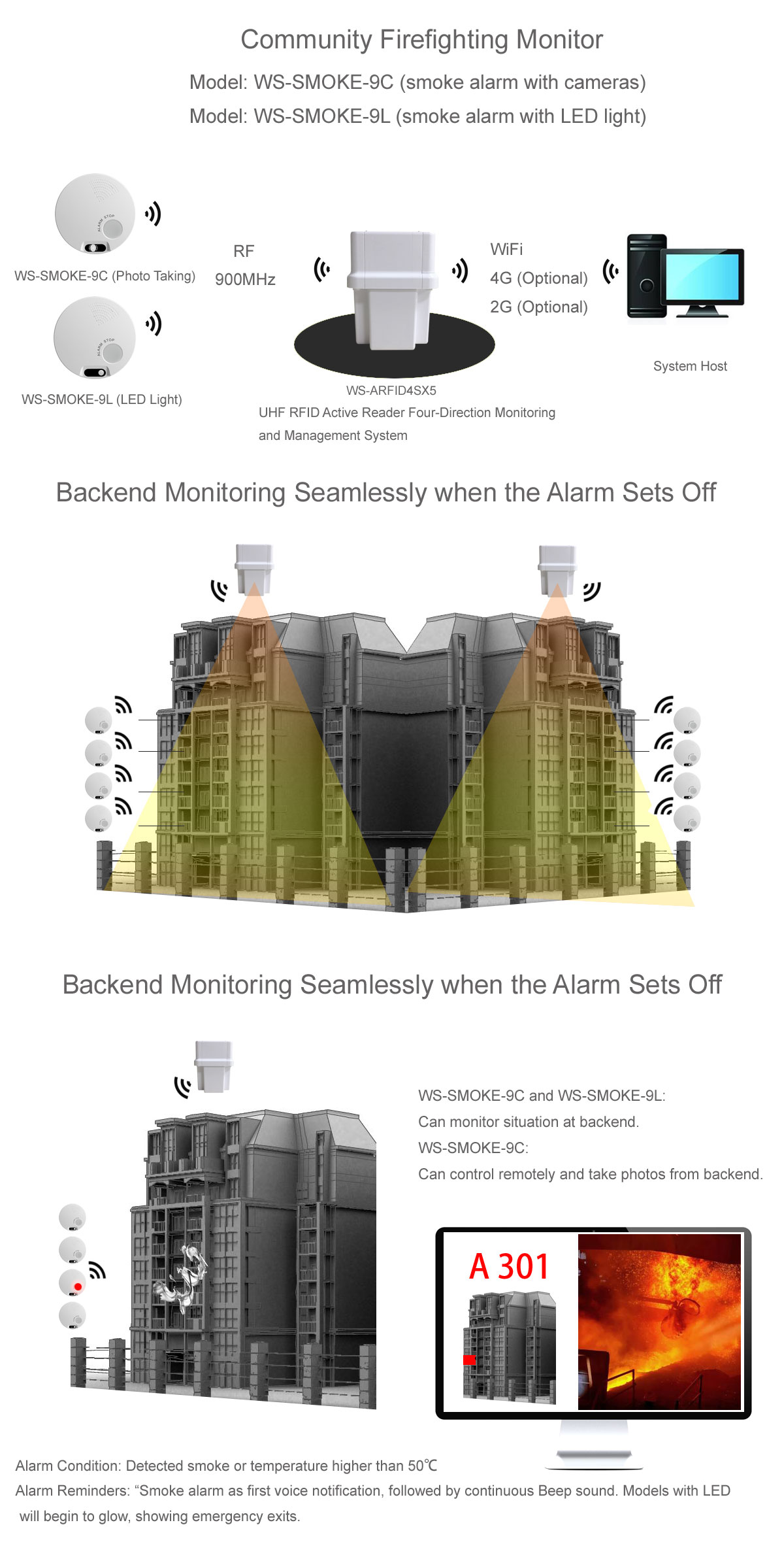

WS-SMOKE-9C

900MHz

Smoke alarm with photo taking

It must work with WS-ARFID4SX5 active reader.

(For community or wide range use)

WS-SMOKE-9L

900MHz

Smoke alarm with LED light

It must work with WS-ARFID4SX5 active reader.

(For community or wide range use)

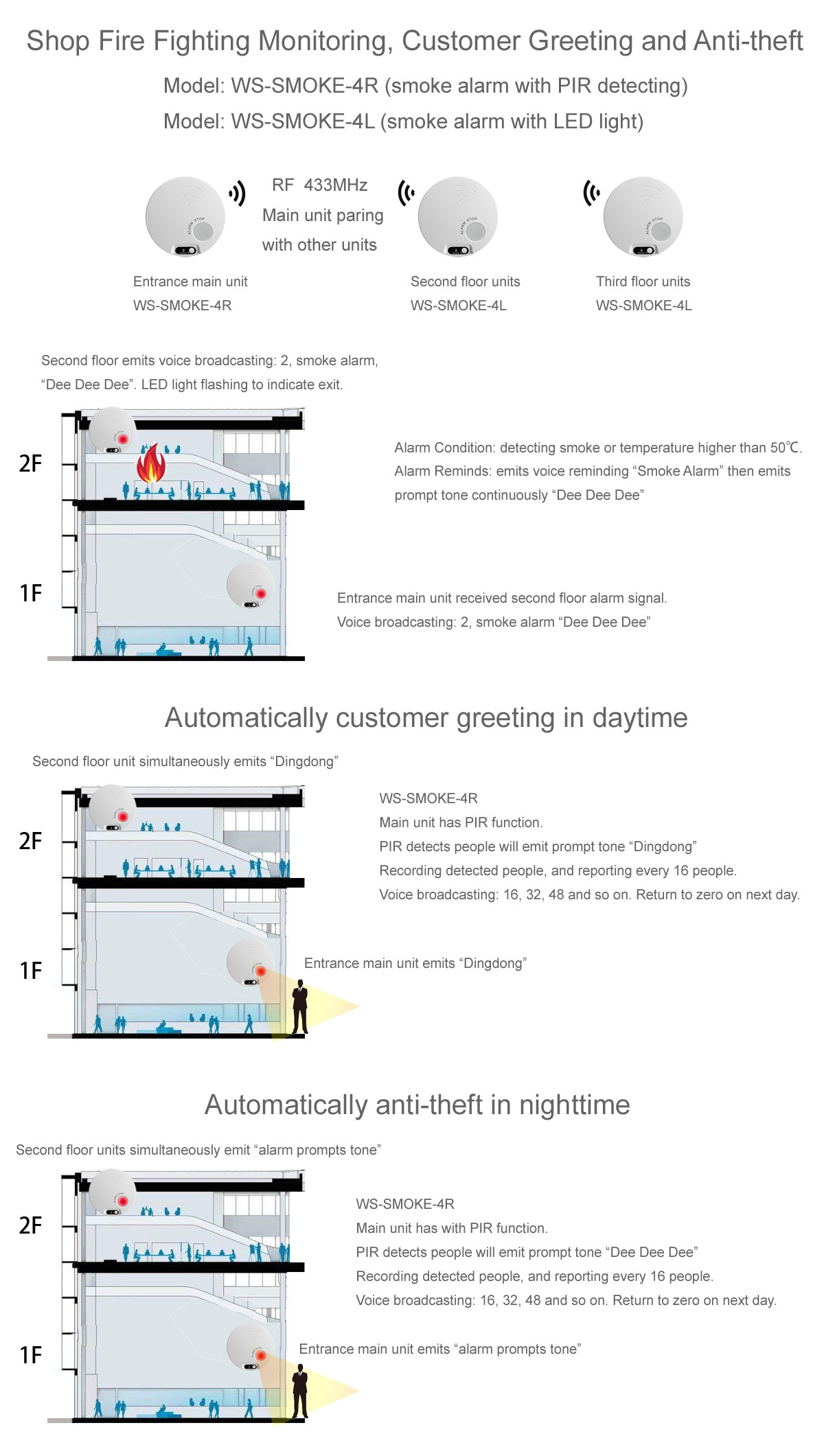

WS-SMOKE-4R

433MHz

Smoke alarm with PIR detecting (For shop use)

* Visitor coming notice prompts, visitors counting, anti-theft alarm

* Able to connect with WS-SMOKE-4L

WS-SMOKE-4L

433MHz

Smoke alarm with LED light (For shop use)

* 1W LED light indicates exit.

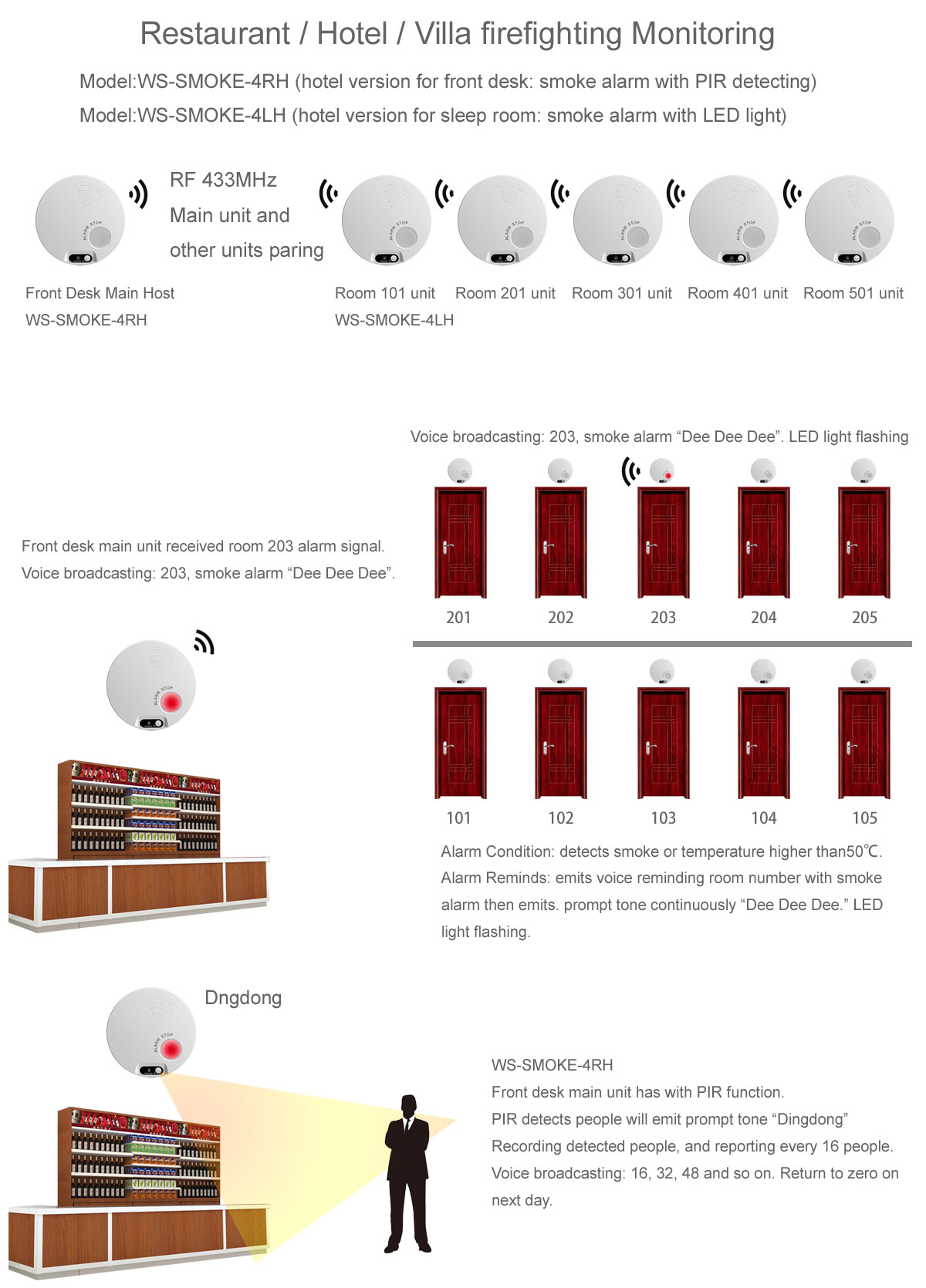

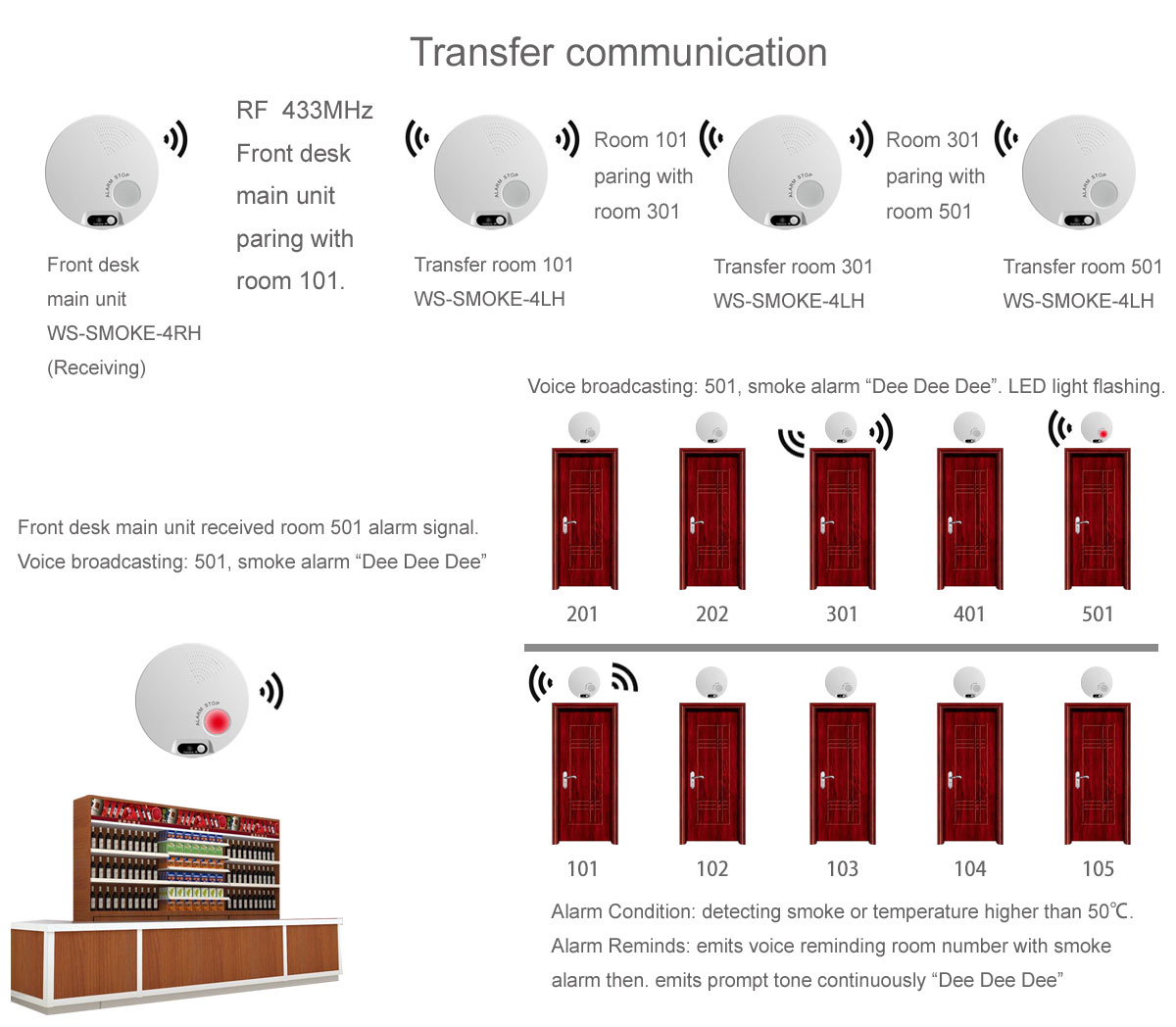

WS-SMOKE-4RH

433MHz

Smoke alarm with PIR detecting

(Hotel/Villa version, for front desk use):

* Visitor coming notice prompts, room number prompts

* Able to connect with WS-SMOKE-4LH

WS-SMOKE-4LH

433MHz

Smoke alarm with LED light

(Hotel/Villa version, for sleep room use)

* 1W LED light indicates exit.


RFID|Wireless Modules|RF Module|Wireless VIDEO



RFID|Wireless Modules|RF Module|Wireless VIDEO



RFID|Wireless Modules|RF Module|Wireless VIDEO



RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO


SPECIFICATION

Technical specifications



  • Working Frequency:434MHz/900MHz

  • RF protocol:IEEE 802.11b , IEEE 802.11g

  • Transmit Power Rate:100mW

  • Modulation:FSK

  • Working Temperature:-10~55℃

  • Storage Temperature:-20~60℃

  • Working Humidity:10~90%(non-condensation)

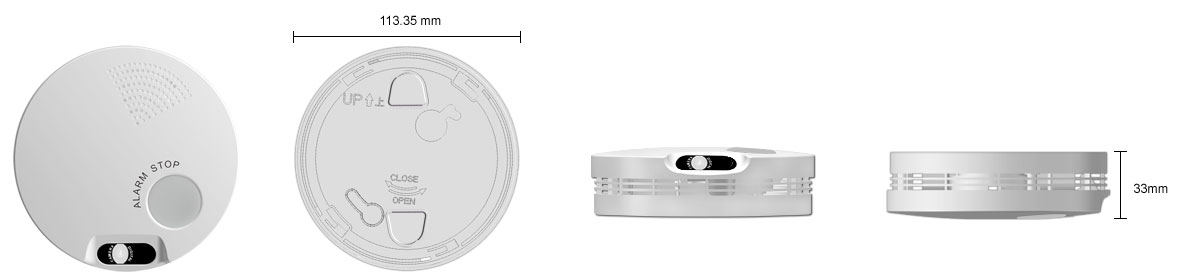

  • Dimension:113.35(diameter)*33(thick)mm

  • Battery Life:6000 times
