Home > Products > RTLS System> RTLS Positioning System > UHF RFID Active Reader
Four-Direction
Monitoring and Management System

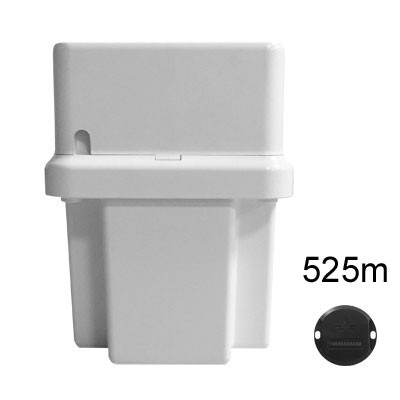

UHF RFID Active Reader
Four-Direction
Monitoring and Management System

Model:
WS-ARFID4SX2-L-2G
WS-ARFID4SX2-L-4G
WS-ARFID4SX2-2G
WS-ARFID4SX2-L-WiFi
WS-ARFID4SX2-4G
WS-ARFID4SX2-WiFi

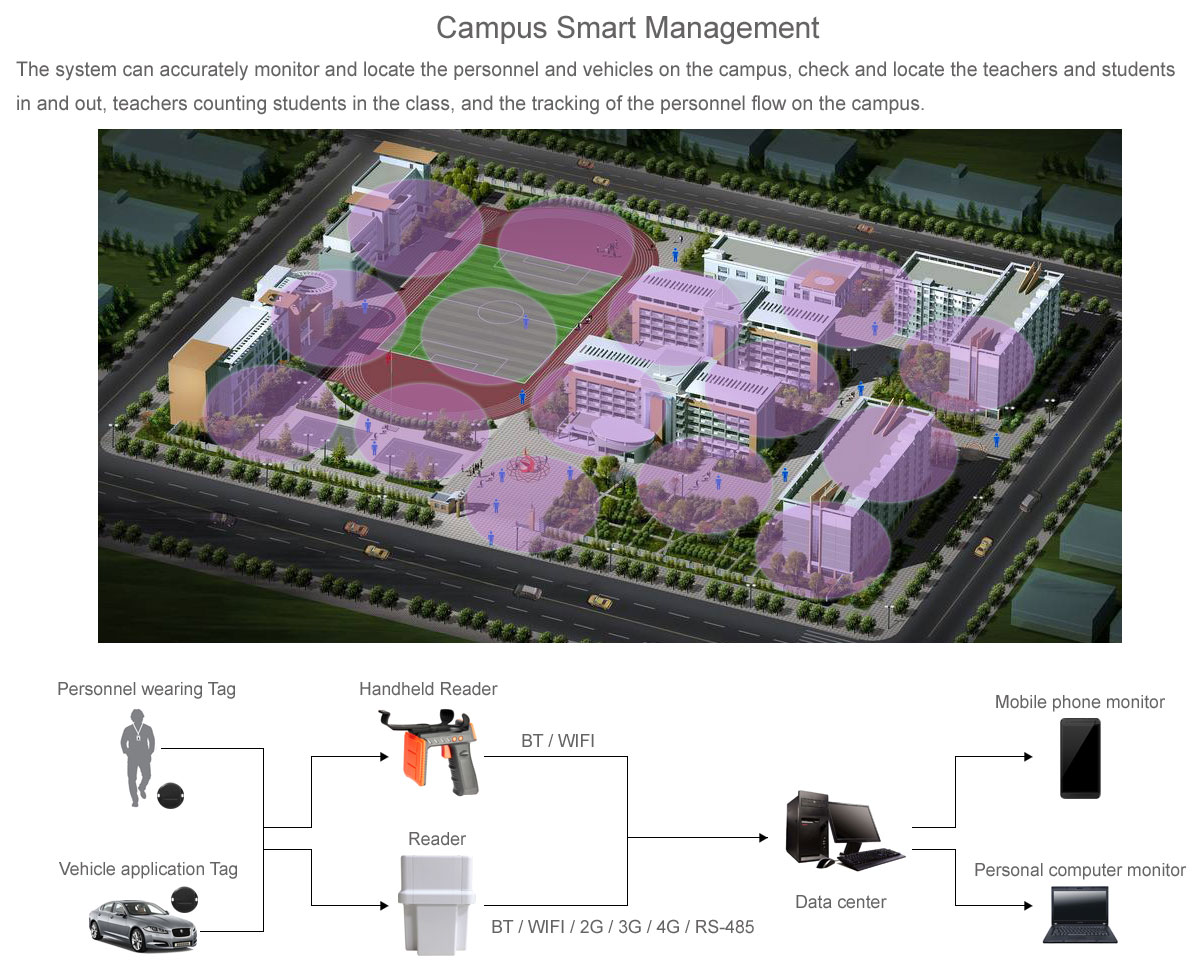

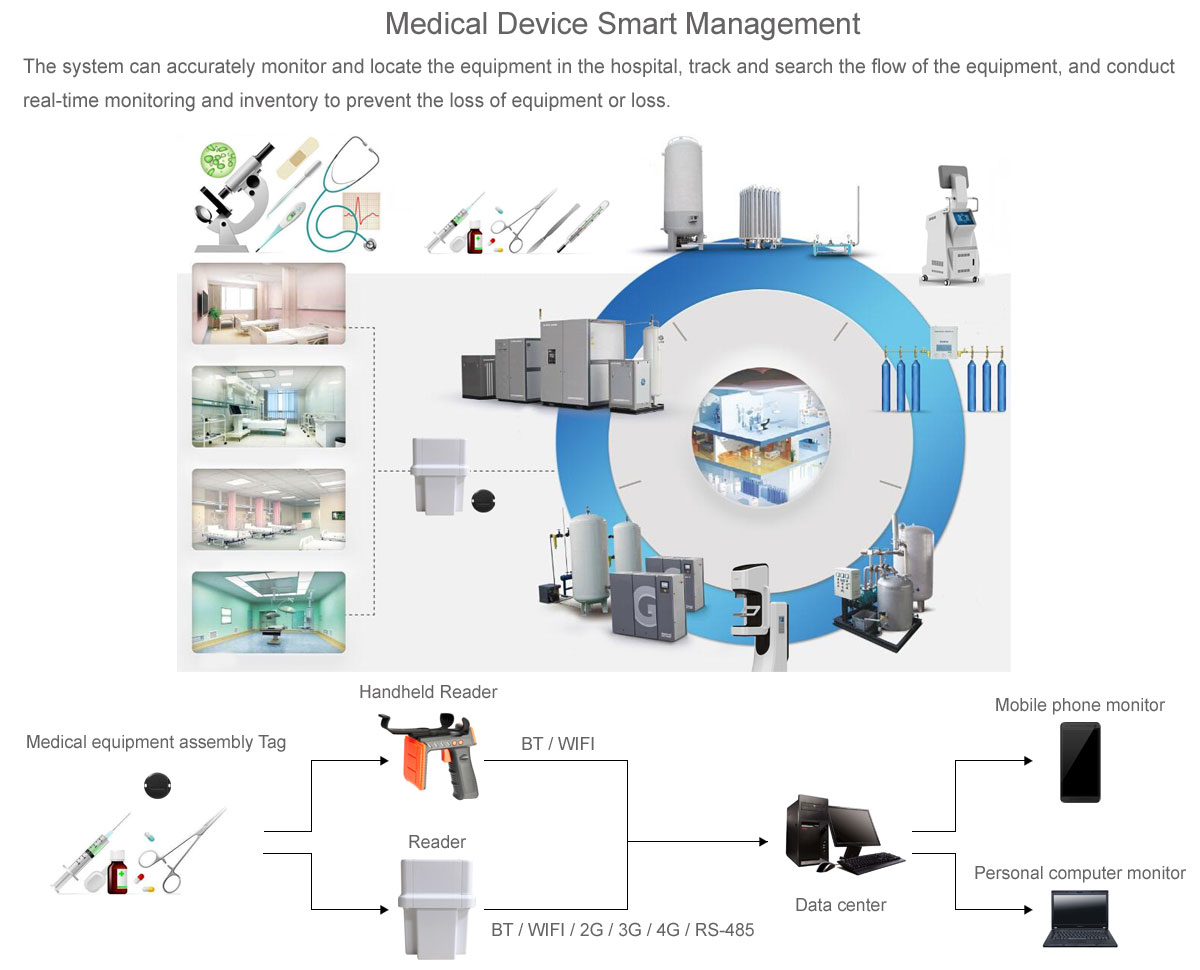

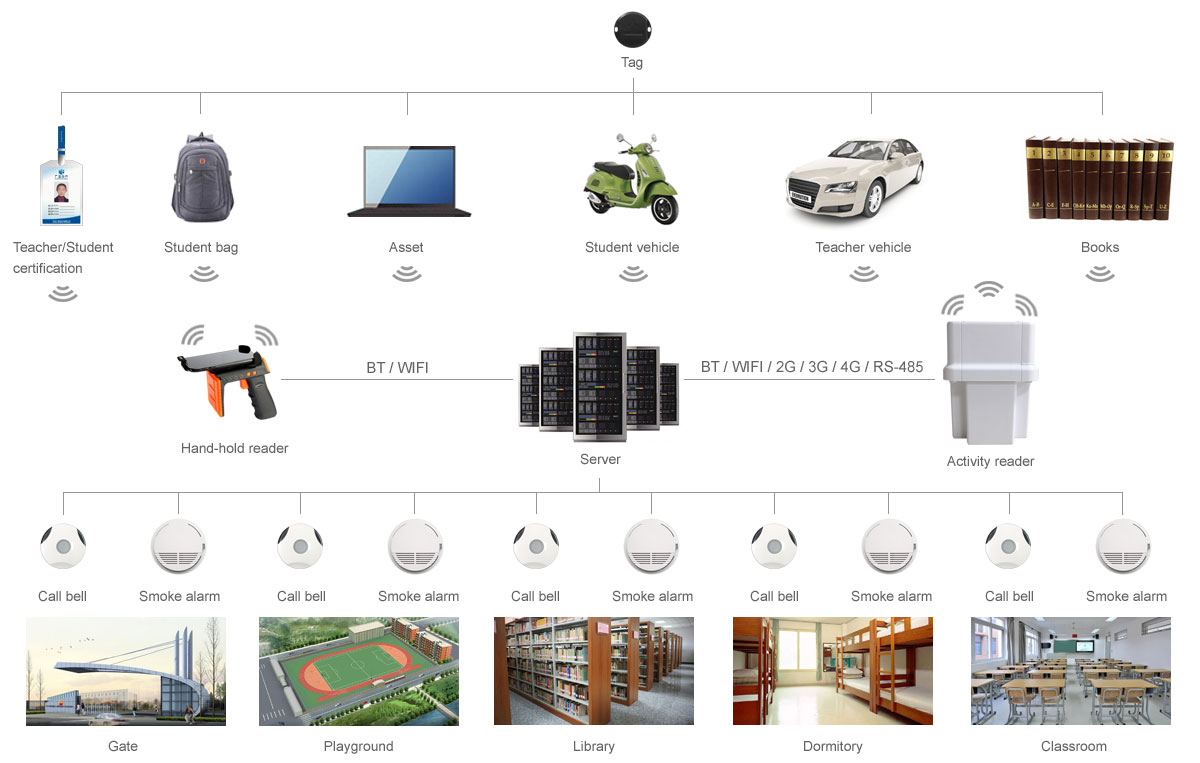

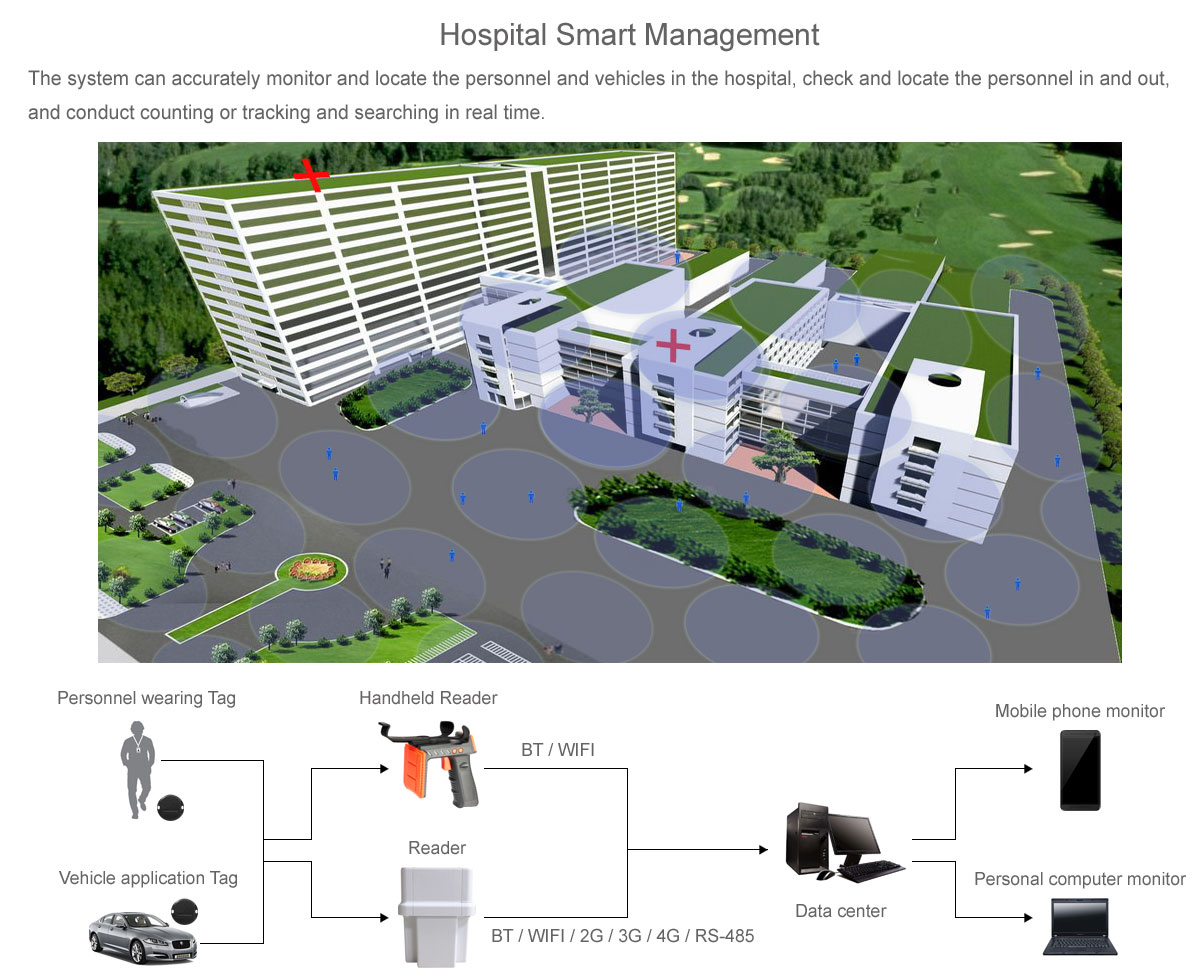

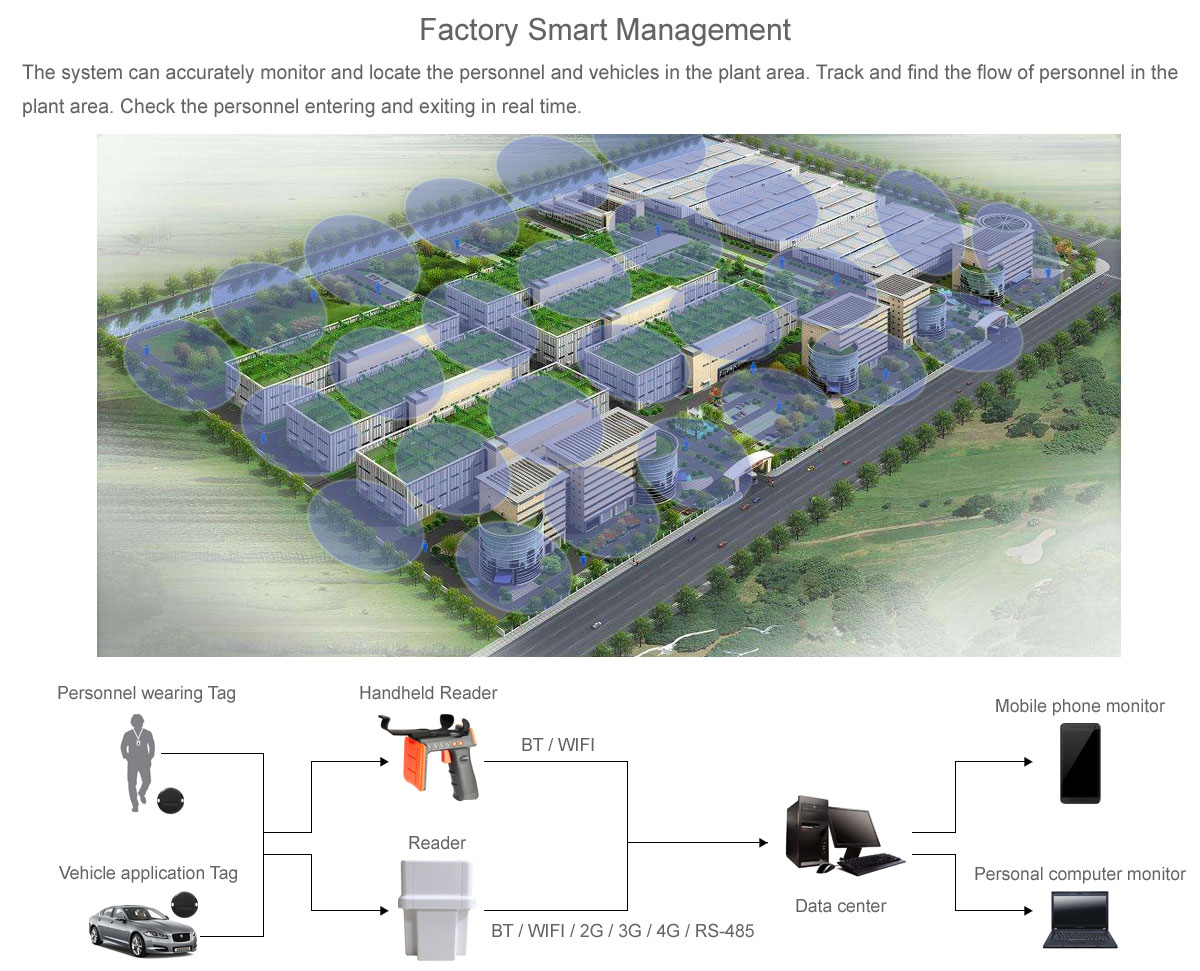

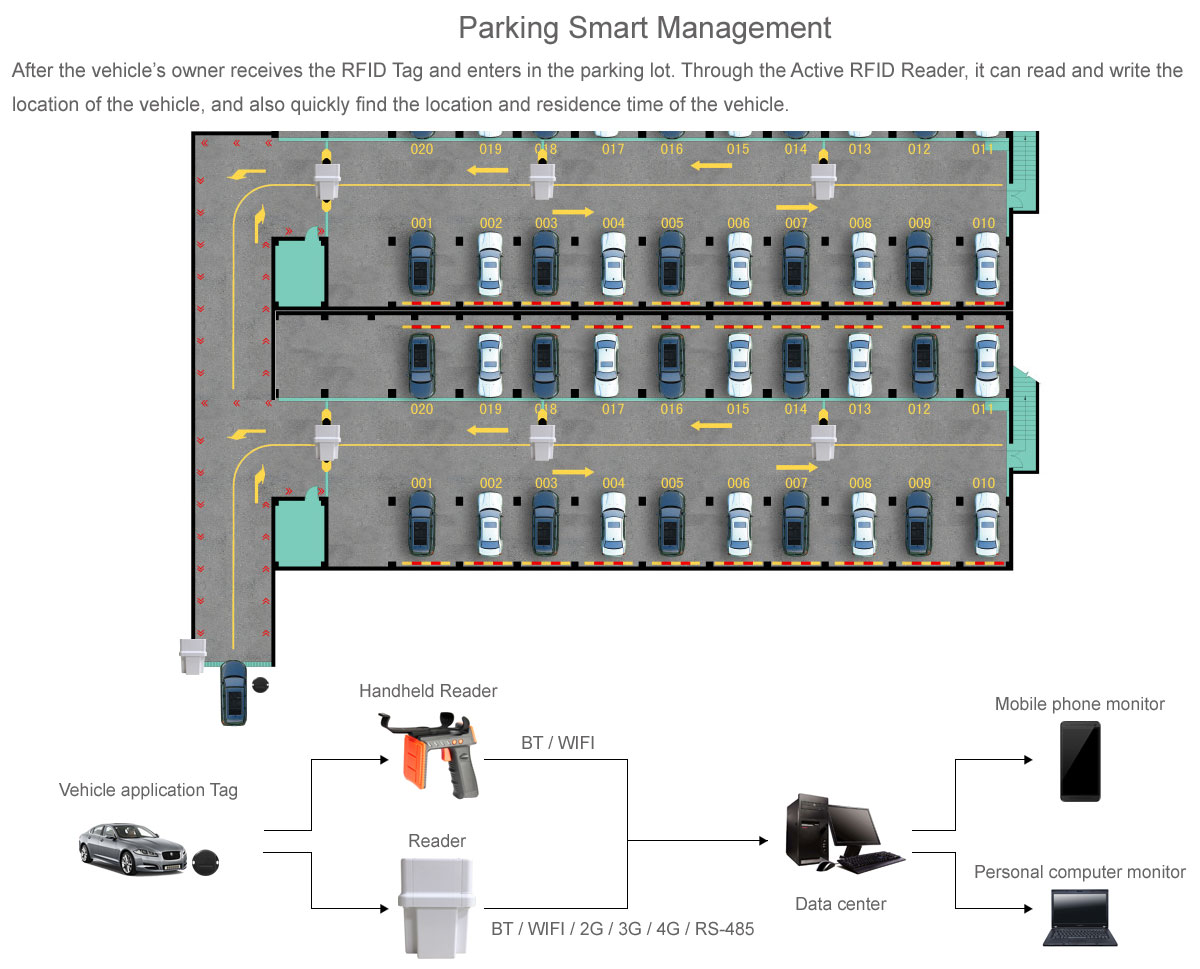

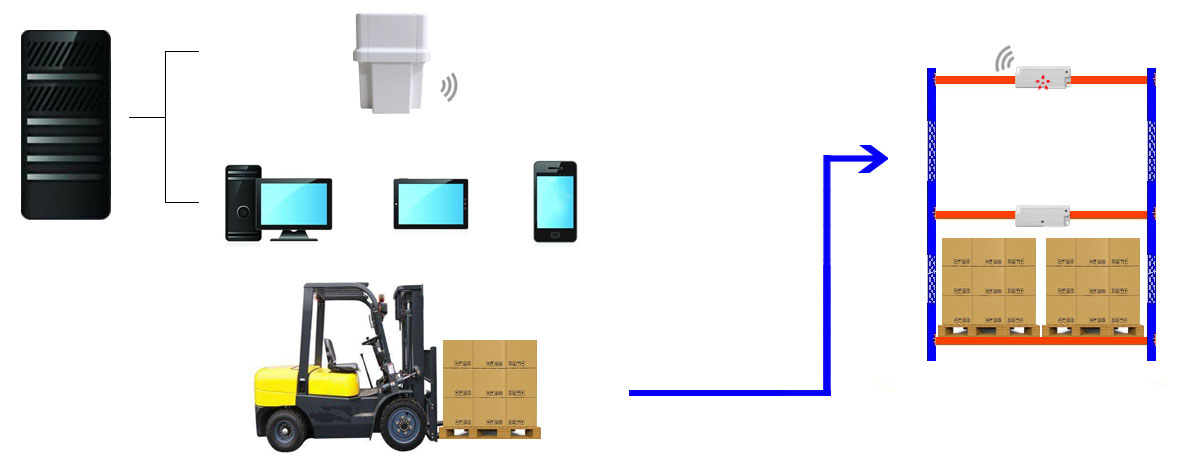

The system has built-in four antennas, which can read in four directions and four high-gain directional antennas. Its superior reading and writing capability are greatly improving the reading rate. Full-color LED reminder, Buzz sound control, and POE power supply. It adopts environmentally friendly ABS plastic material, ultrasonic sealing and laser engraving coding, which has strong sealing and good waterproofness. The system is designed for smart access control, regional personnel and vehicle positioning. It can be applied to school safety management, hospital medical equipment management, factory safety management, hospital equipment searches and management, etc., to achieve automatic safety management. The data is saved in the cloud, which can form a report classification and archive.

INTERFACE

Specification


MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS MetInfo enterprise content manager system | MetInfo CMS

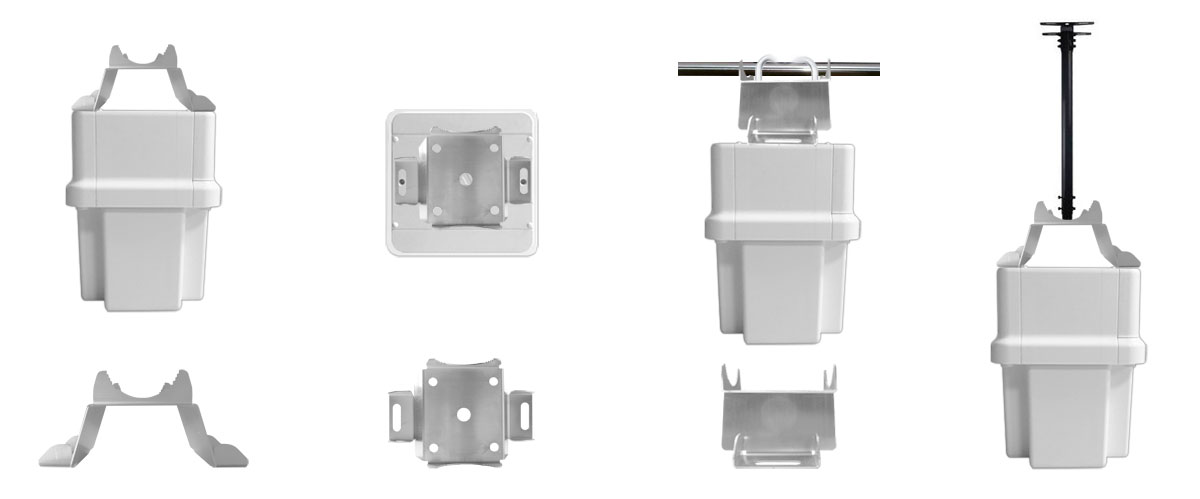

APPEARANCE

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO


RFID|Wireless Modules|RF Module|Wireless VIDEO

MetInfo enterprise content manager system | MetInfo CMSRFID|Wireless Modules|RF Module|Wireless VIDEO


RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO

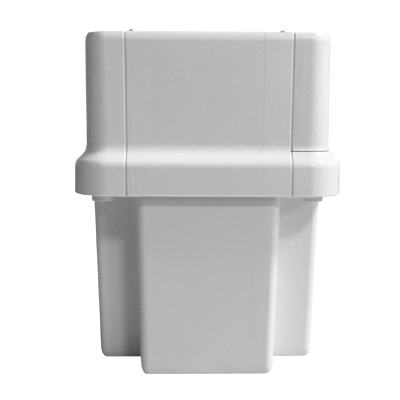

Model: WS-ARFID4SX2

RFID|Wireless Modules|RF Module|Wireless VIDEO



Model: WS-ARFID4SX2-L

RFID|Wireless Modules|RF Module|Wireless VIDEO


RFID|Wireless Modules|RF Module|Wireless VIDEO


MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS


RFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO


RFID|Wireless Modules|RF Module|Wireless VIDEO


MetInfo enterprise content manager system | MetInfo CMSRFID|Wireless Modules|RF Module|Wireless VIDEO

RFID|Wireless Modules|RF Module|Wireless VIDEO


MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS


MetInfo enterprise content manager system | MetInfo CMS


SPECIFICATION

Technical specifications

Specification of UHF RFID Active Reader

Working Frequency: 902~928MHz

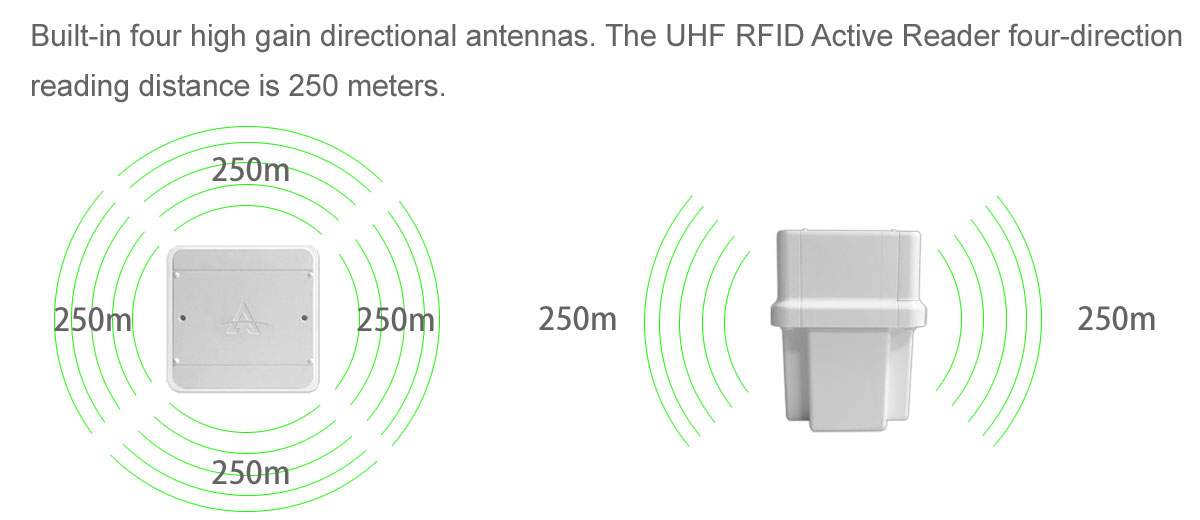

Antenna: Built-in four high gain directional antennas

Reading Distance: The host reads 250 meters in each direction

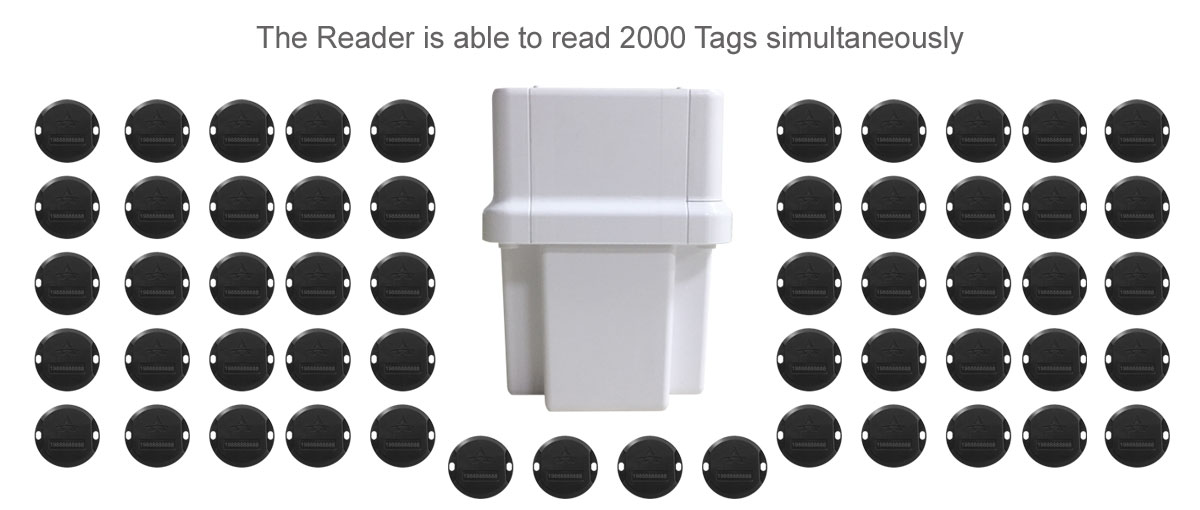

Reading Ability: The Reader is able to read 2000 Tags simultaneously

Communication Interface: RS485, WiFi, 2G/3G/4G (Choose one)

Output Power: 12dBm

Working Voltage: 9~50V (POE power supply)

Feature: Full-color LED with reminder or warning indicator in four directions

Working Temperature: -10°C ~ +60°C

Storage Temperature: -10°C~+80°C

Working Moisture: 20%~95% (no Condensation)

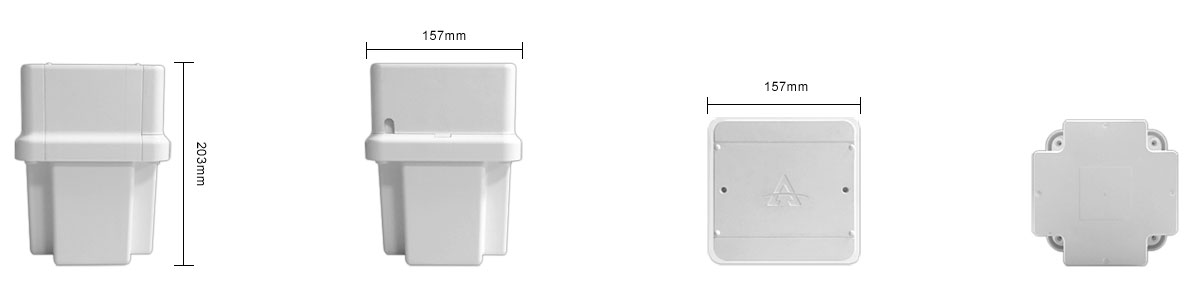

Size: 203*157*157mm

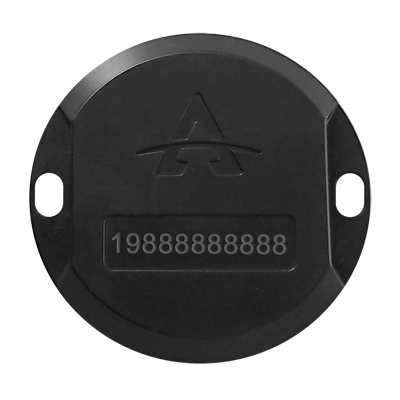

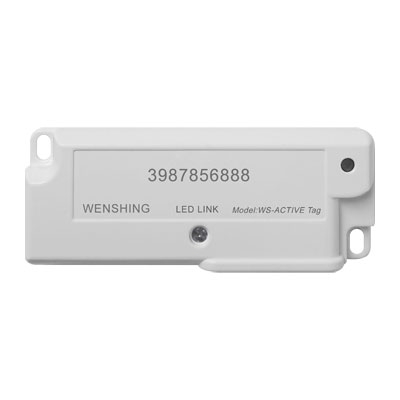

Specification of Tag

Working Frequency: 902~928MHz

Output Power: -3~12dBm

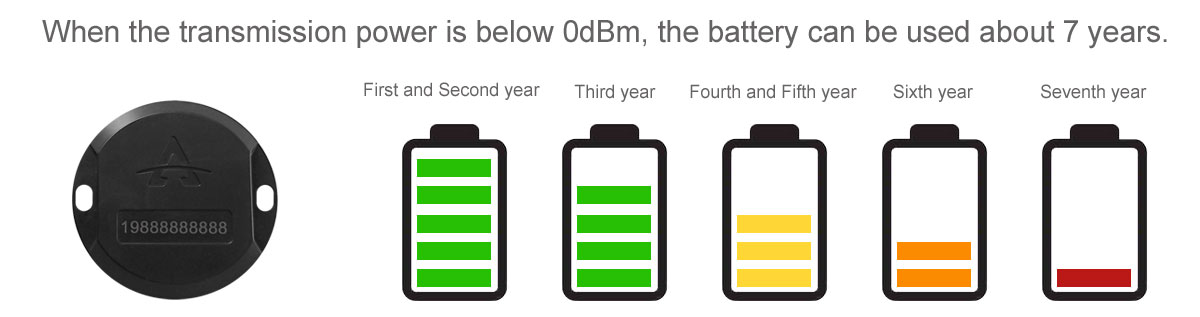

Feature: When the transmission power is below 0dBm, the battery can be used about 7 years.

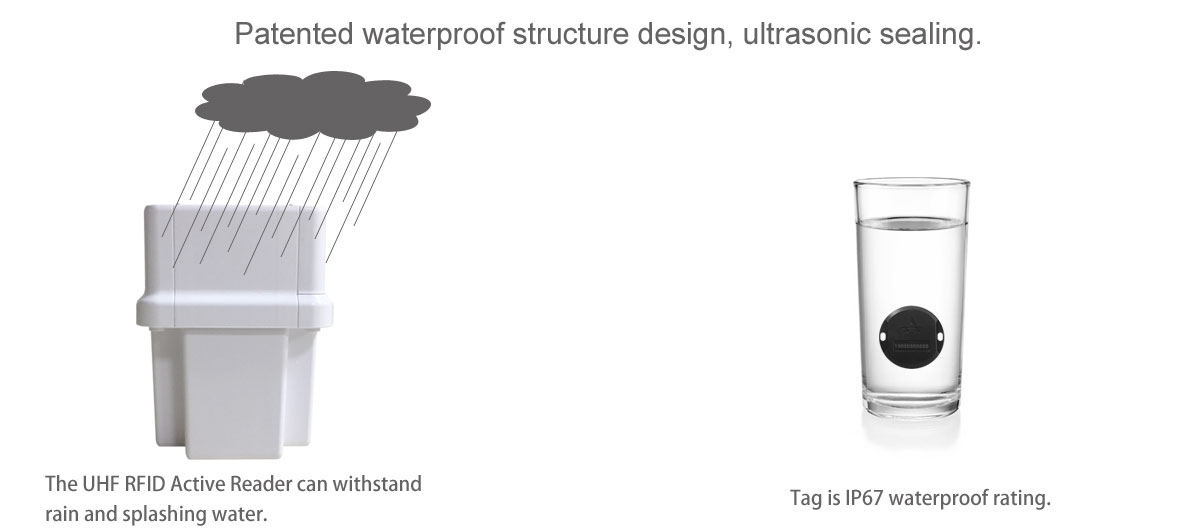

Structure: Ultrasonic sealing, good sealing, IP67 waterproof rating.

Working Temperature: -10°C ~ +60°C

Storage Temperature: -10°C~+80°C

Working Moisture: 20%~95% (no Condensation)

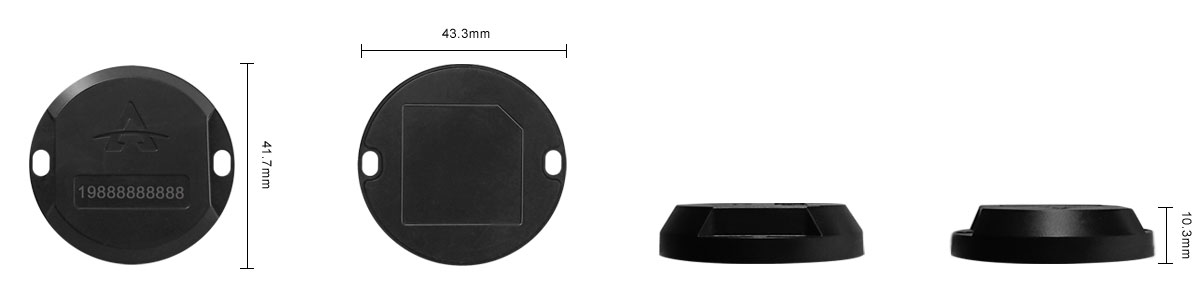

Size: 43.3*41.7*10.3mm

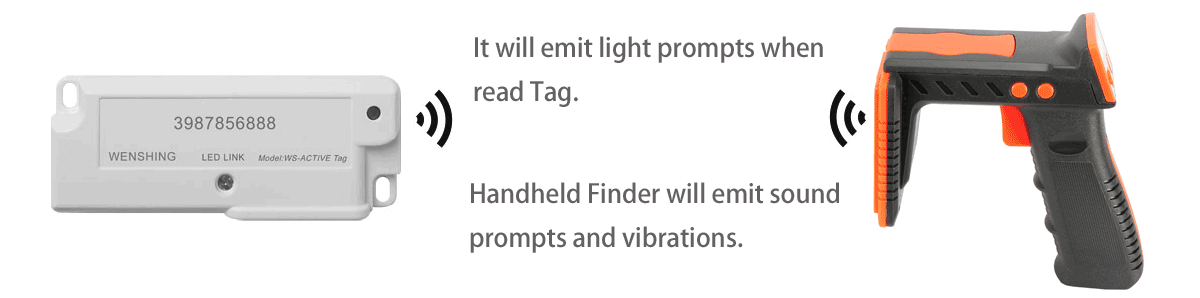

Handheld Reader

Working Frequency:902~928MHz

Protocol: EPC Class 1 Gen 2 ISO18000-6C IS18000-6A/B

Antenna: circular polarized antenna (RHCP)

RF Power: 1w (30dBm)

Reading Range: able to reach 7 meter (depends on environment tag size or function)

Display: OEL Display 96x39 pixels

Memory device: Micro SD

Blue tooth: Bluetooth V2.1+EDR Class2

WiFi: IEEE802.11b/g standard

WiFi Encryption and Authentication: WEP64/WEP128/ TKIP/CCMP(AES) OPEN/WPA-PSK/WPA2-PSK

Adaptor: DC 5V/1A

Battery: Build- in 3.7 v 3000 mAh Li-ion Rechargeable Batteries

Operating temperature: 0℃ to +50℃ (+32°F to +122°F)

Storage temperature:-10°C~+80°C

Humidity:20%~95%(non-condensing)
