Indoor positioning temperature measurement system

Model:
WS-ACS

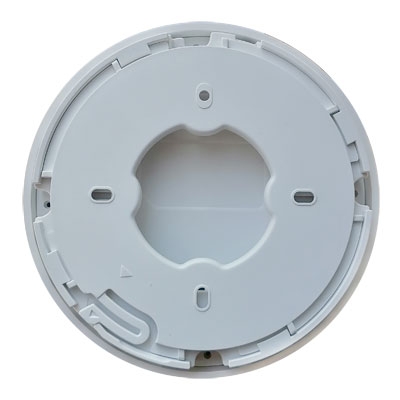

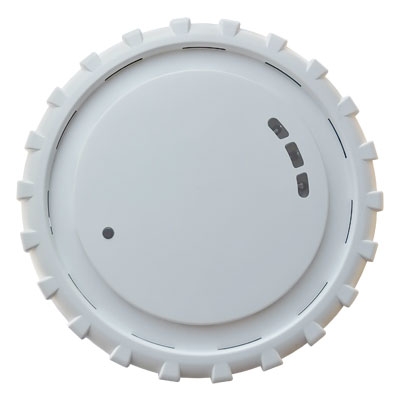

Wireless location base station

Communication frequency: 916MHz frequency hopping in RFID band

Background communication: 2G/4G, WiFi (optional)

Number of supports: 2,000 receiving points can be operated at the same time within 4 seconds

Working voltage: internal 3.8~4.2V, external 7~28V

Communication mode: GFSK anti-collision and two-way function

Antenna: equipped with four omnidirectional antennas

Communication distance: 200M~500M

UPS: Built-in uninterruptible power system, it can still work normally after six hours of power failure

Power supply: can be connected to the mains or optional outdoor solar power supply

Waterproof rating: IP65


Positioning temperature measuring bracelet

Working frequency: 125KHz~918MHz

Ultra-low power consumption: average current 5uA

Number of frequency hopping channels: 64CH

Support 125KHz~918MHz RFID channel

Working voltage: 2~3.6V

Positioning distance: 1M~30M

Posture analysis: gestures, impact force

Support two-way communication, adjustable power, deep sleep (1uA)

Built-in emergency button

Low voltage warning, sound and LED display

Background monitoring of skin temperature and body temperature

Firmware can be ***d in the background

Electromagnetic wave positioning and calling function

Electronic fence, skin temperature, machine core temperature, emergency button, watch strap damage warning

Power management: low power reminder, normal deep sleep

Body monitoring: epidermal monitoring

Standby time: more than 5 years of normal use

With anti-dismantling alarm function

Battery: CR2450*1pcs

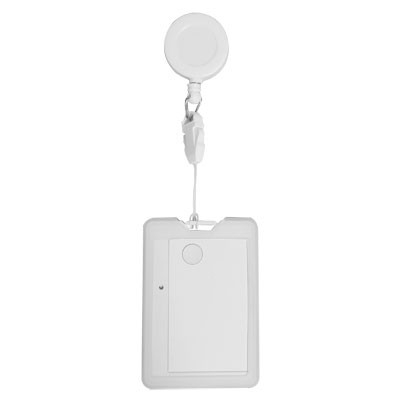

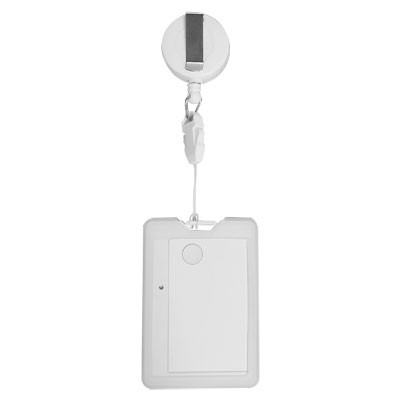

High-precision real-time positioning card

Working voltage: 2~3.6V

Normal working current: 5uA

Positioning distance: 1M~30M

Number of frequency hopping channels: 64CH

Support 125KHz~918MHz RFID channel

Two-way communication, power adjustment, deep sleep (1uA)

Built-in emergency button

Low voltage warning, sound and LED display

Temperature background monitoring

Support card placement angle, vibration intensity, limit raft value

Firmware can be ***d in the background

Working hours: more than one year of normal use

Standby time: more than 5 years of normal use

Battery: CR2032*2pcs
