915MHz 2dBi Ceramic Antenna (with PCB)

Model:
WS-ANT915-2CPCB

This antenna is available in a wide array of types including high sensitivity, alterability, mobility...etc. The antenna has been good at designed, superior performance, and better than cord antenna. The signal and coverage are also broader.


APPEARANCE

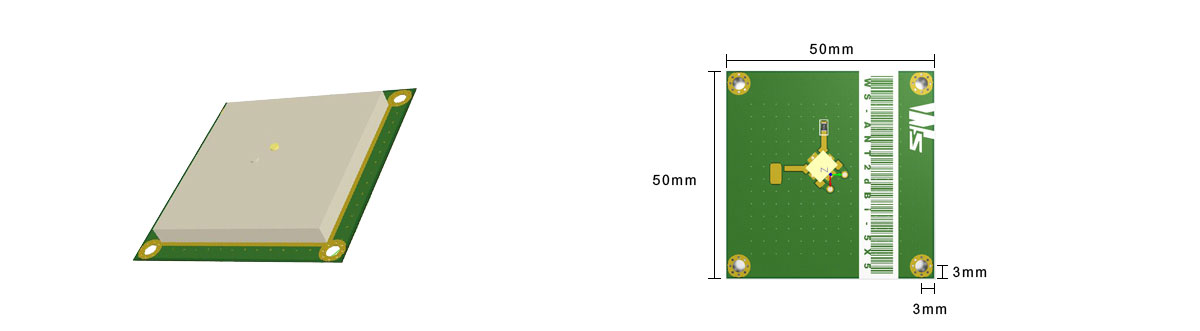

External Appearance

RFID|Wireless Modules|RF Module|Wireless VIDEO


SPECIFICATION

Technical specifications


Main Technical Specifications
Center Frequency915±1MHz
Bandwidth4MHz min. @S11≤-10 dB
Axis Ratio3.0 dB Typ
Antenna Gain2dBi (Grounding 50mm*50mm)
Standing Wave≤1.5
Working Temperature-40 to +85
Limit Temperature-40 to +85
Relative Humidity10 to 95% RH
Size50*50mm
