Maximally Flat HPF Calculator

n fc [MHz] Zo [ohm] >>>

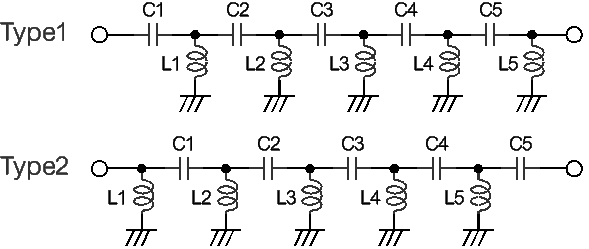

Type1 C1 [pF] L1 [nH] C2 [pF] L2 [nH] C3 [pF]
L3 [nH] C4 [pF] L4 [nH] C5 [pF] L5 [nH]

Type2 L1 [nH] C1 [pF] L2 [nH] C2 [pF] L3 [nH]
C3 [pF] L4 [nH] C4 [pF] L5 [nH] C5 [pF]

[ How to use ]
1. Input element number (n), cutoff frequency (fc), characteristic impedance (Zo),
and click on [ Calculate ] button.
2. A calculation result is indicated.
