Coplanar Strips Calculator

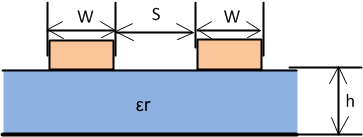

er
s [mm]
h [mm]
fo [MHz]



w [mm] > Zo [ohm]
Zo [ohm] > w [mm]



er eff k lambda/4 [mm]

[ How to use ]
1. Input the parameter of the circuit board and center frequency.
2.
(1) When the characteristic impedance (Zo) of the line width (w) is calculated.
Input w, and click on [ Analyze ] button.
(2) When the line width (w) of the characteristic impedance (Zo) is calculated.
Input Zo, and click on [ Synthesis ] button.
3. A calculation result is indicated.
